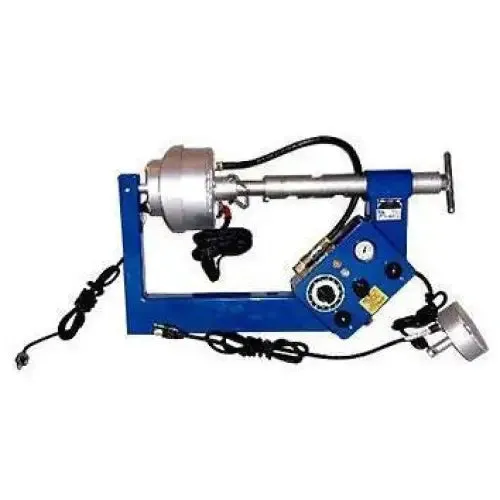

Name: LMC Model MT Medium Truck Tire Vulcanizer MT Model
SKU: 1939060

Product Details ＋

The all-new Model MT (T022) air-operated vulcanizer is the latest generation in repair equipment. Now repair the tread, shoulder, and sidewall areas of medium-sized (8:25 through 12:00) truck tires with one vulcanizer.

Features:

Patented piston/pad airhead produces professional-looking sidewall repairs unequaled in the industry.
Tread and shoulder areas are solidly repaired with constant pressure provided by contour plates and a spring-loaded compensating system.
The heat from both sides of the tire offers maximum repair efficiency.
Optional stand (T031) supports tire-on roller assembly for rotation—the horizontal orientation of the spotter from the repair area.
Contour plate set T155 contains five plates (T086. T087, T130, T131, T134) is required.
Available in 120 volts or 240 volts.

Specs:

Curing head size: 6 in
No. curing heads: 3 ea.
Throat depth: 8 in
Throat Height: 19 in

Includes:

T192: Detent pin
T226: Frame
T227: Plunger
T228: Spring
T229: Inside heat unit extension shaft
T230: Telescoping assembly
T057: Contour up silicone rubber heat pad (6 in diameter)
T060: Heat units - 4 in (2)
T063: Silicone rubber seal (6 in diameter)
T064: Steel air cylinder with contoured lip
T121: Detachable electrical cord for T057
T277: Air hose with fittings
T280: Panel Mount Air Gauge
T281: Circuit Breaker
T274: Humphrey Valve
T220: Pilot Light
T119: Regulator Low Pressure
T145: Thermostat for 4 in HU
T125: Element for 4 in HU
T132: 1 Hour Timer
