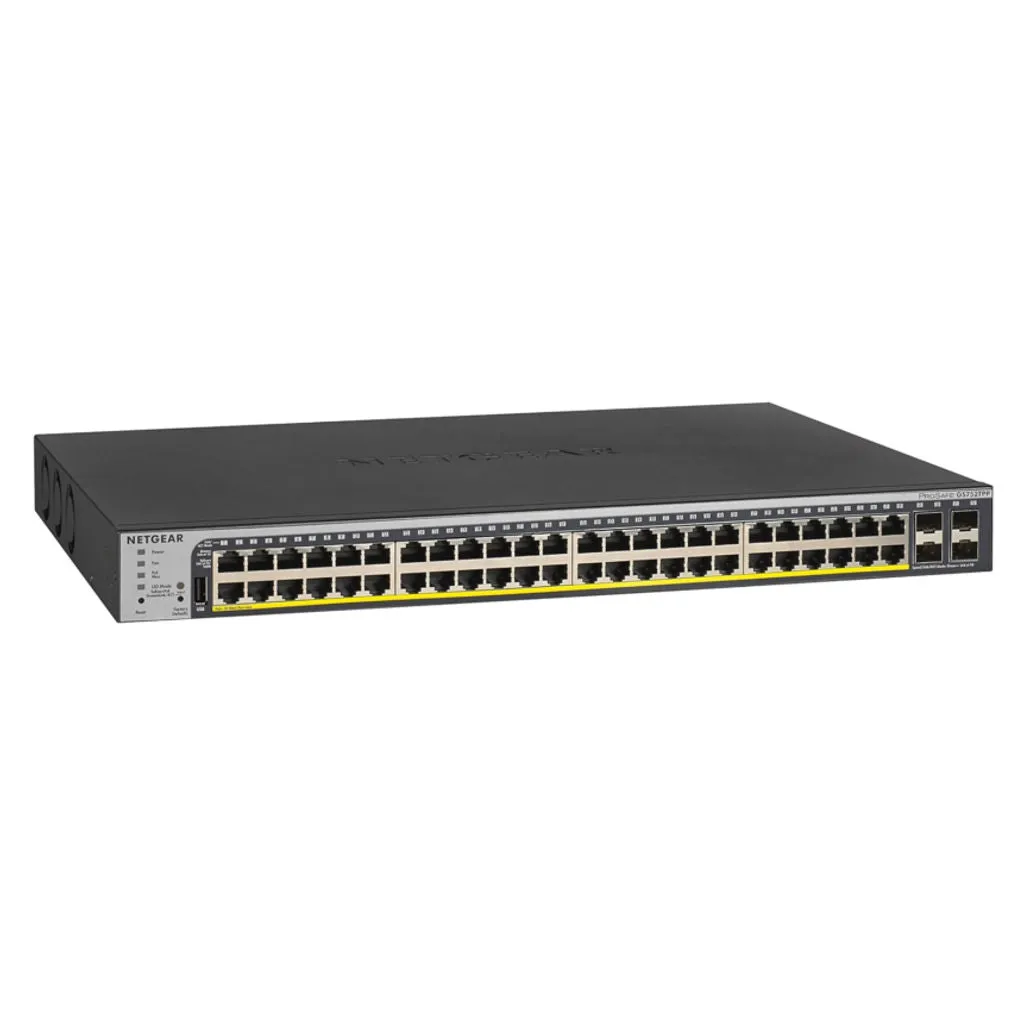

Name: Netgear 48 Port Gigabit Ethernet PoE Smart Switch With 4 SFP Port 760 W GS752TPP
SKU: 1101992

Product Details ＋

Product Description

Build A Future-Proof Network With Netgear
Solid performance with non-blocking architecture, 16K MAC addresses, 256 VLANs, 100 shared (ingress) ACLs and 512 Multicast groups
Comprehensive IPv6 supporting management, QoS, ACL and routing, ensuring investment protection and a smooth migration to IPv6-based network
PoE support on all models and on all ports
4 Dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network
Fully-Integrated Cloud-Manageable Devices
Remote/Cloud management capability with NETGEAR Insight
Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser
Smart IT, Not Big IT
Easy-to-use Web browser-based management GUI
Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface
Dual firmware images improve reliability and uptime to your network
NETGEAR Quality And Reliability
Worry-free NETGEAR limited lifetime warranty, online technical chat support and Next Business Day (NBD) replacement
90-days Free 24x7 advanced Technical phone support

Product Specification

Brand	Netgear
Product Type	POE Switch
Product Model	GS752TPP
10M/100M/1G RJ-45 Copper Ports	48
PoE / PoE Ports	48 PoE (760W PoE budget)
1G SFP (Fiber) Ports	4 (dedicated)
USB Port (For Config File Upload/Backup & Firm- Ware Updates)	Yes
Performance Specification
CPU	MIPS-34Kc 700MHz Single Core
Packet Buffer Memory (Dynamically Shared Across Only Used Ports)	1.5 MB
Forwarding Modes	Store-and-forward
Bandwidth	104 Gbps
Priority Queues	8
Priority Queuing	Weighted Round Robin (WRR)
MAC Address Database Size (48-Bit Mac Ad- Dresses)	16K
Multicast Groups	512
Number Of IPV4 Static Routes	32
Number Of IPV6 Static Routes	32
Number Of VLANs	256
Number Of ARP Cache Entries	512 ARP
Access Control Lists (ACLs)	100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet Forwarding Rate (64 Byte Packet Size) (Mpps)	77.38
Jumbo Frame Support (Bytes)	Up to 10K packet size
Acoustic Noise Level 25°C (dBA) (ANSI-S10.12)	39.74dBA
LEDs
Per Port	Speed, Link, Activity; or PoE in different mode
Per Device	Power, Fan, PoE Maximum
Power Consumption
Maximum Power (Worst Case, All Ports Used, Full Poe,Line-Rate Traffic) (Watts)	861W
Maximum Power Without Poe (Worst Case, All Ports Used, Line-Rate Traffic) (Watts)	101W
Iddle Power Consumption (All Ports Link-Down Standby) (Watts)	30W
Heat Dissipation (Worst Case, All Ports Used, Full Poe, Line-Rate Traffic) (BTU/hr)	2,944.6 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az	Yes (deactivated by default)
Fan	3
Operating Temperature	0° to 50°C (32° to 122°F)
Humidity	90% Maximum relative humidity (RH), non-condensing
Altitude	10,000 ft (3,000 m) Maximum
Storage Temperature	–20° to 70°C (– 4° to 158°F)
Dimension	440 x 310 x 43.2 mm (17.3 x 12.2 x 1.7 in)
