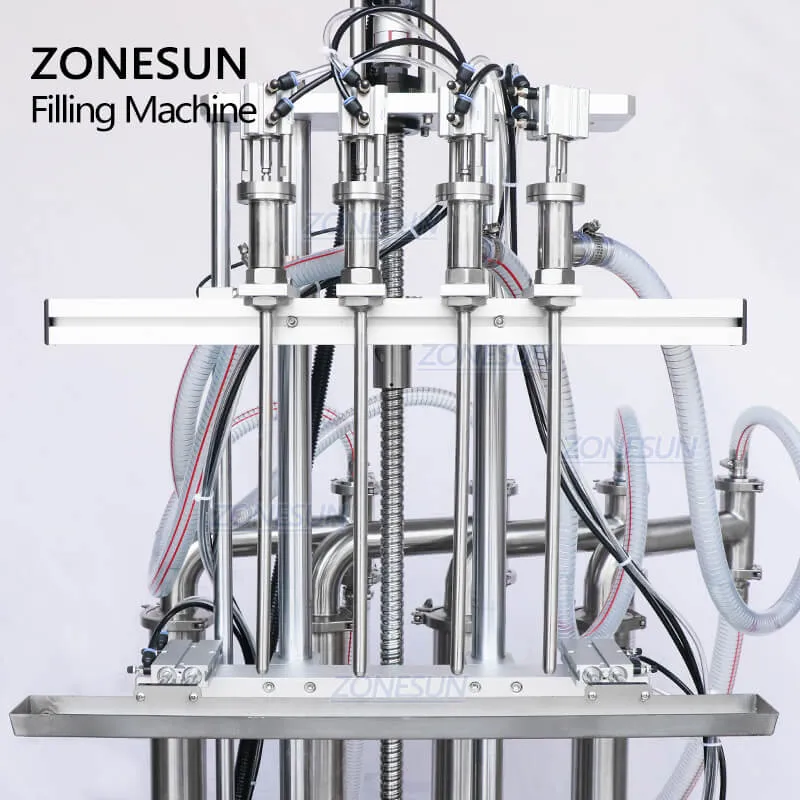

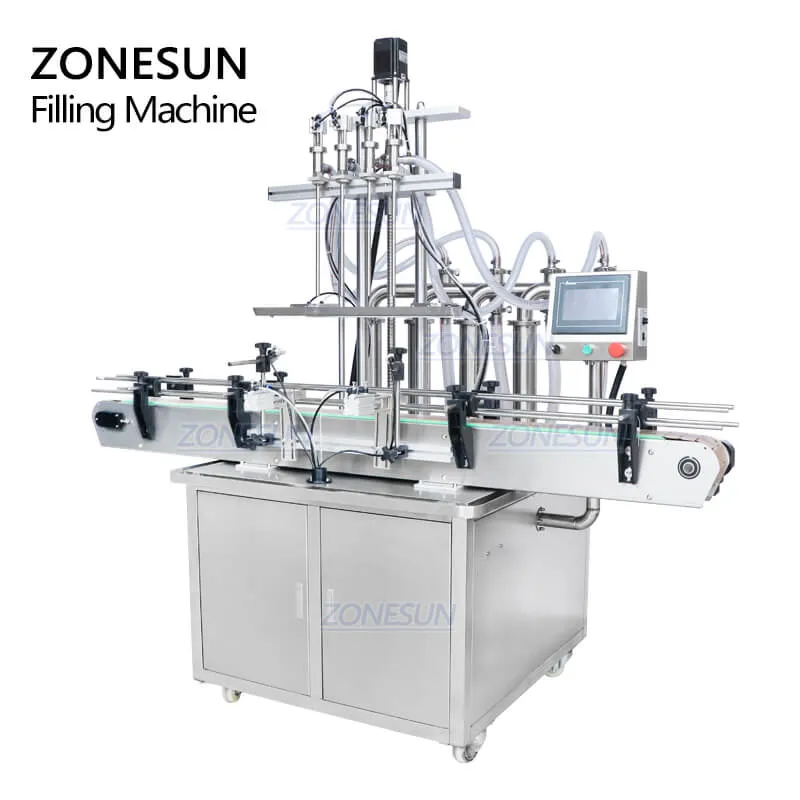

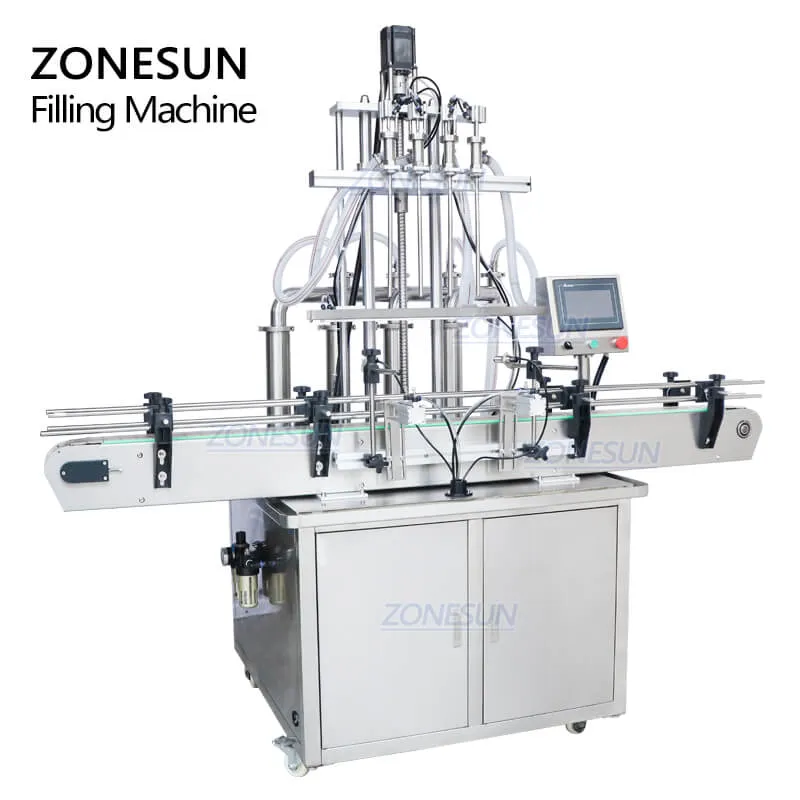

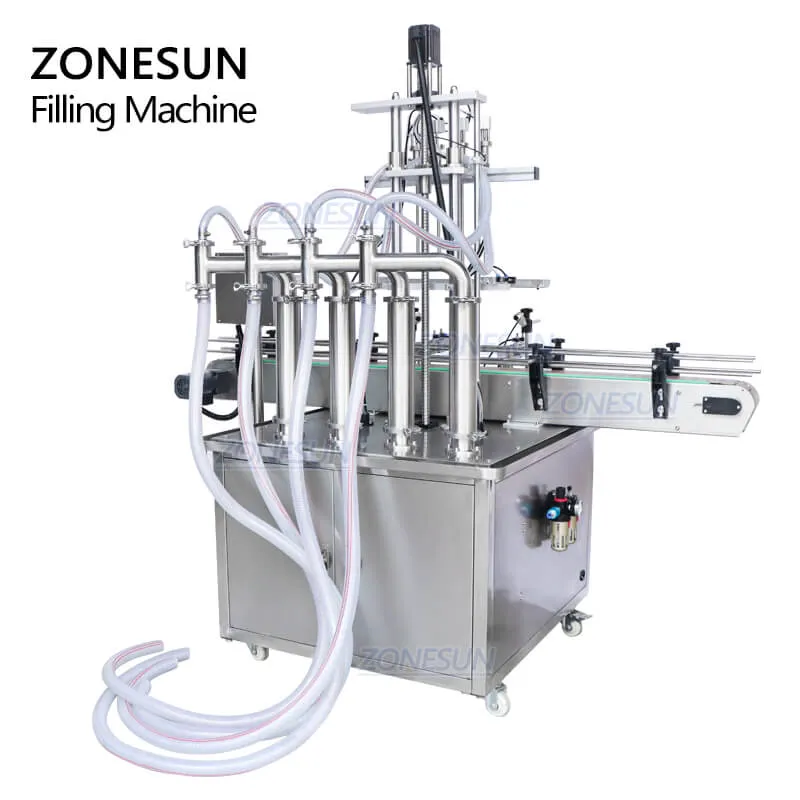

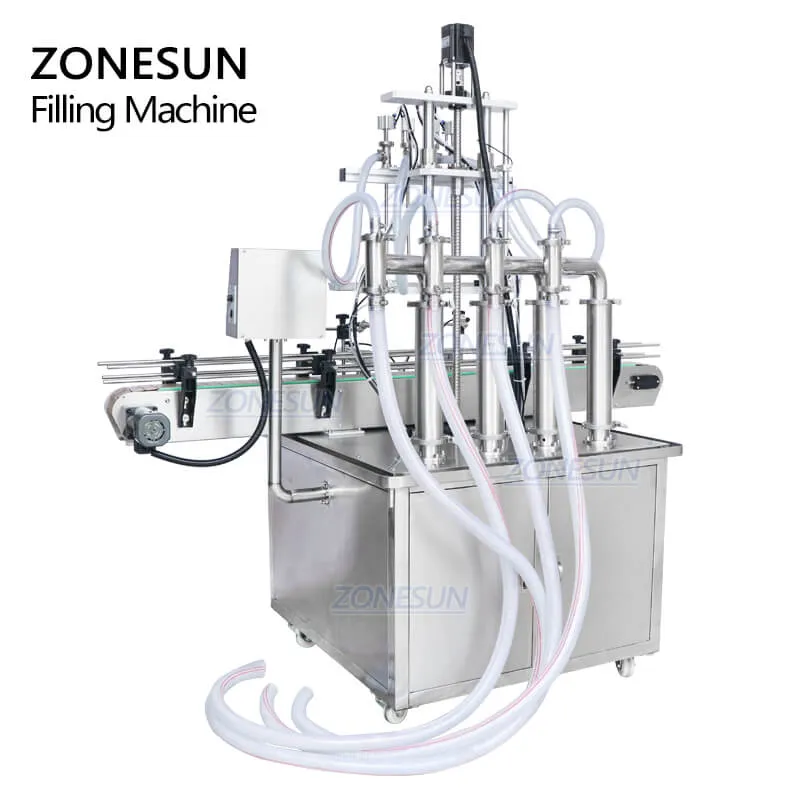

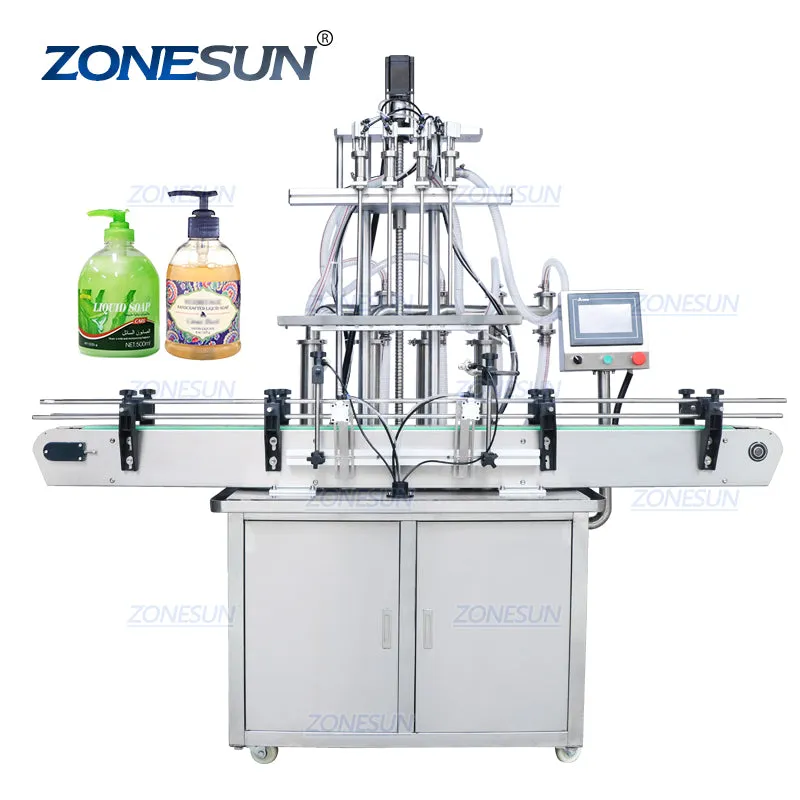

This automatic filling machine is with larger air cylinder which can help to fill liquid faster.It is designed for filling foamy liquid like liquid soap,shampoo,laundry detergent etc because of the diving filling nozzle. Each nozzle can be controlled separately,it can work with the capping machine,labeling machine to achieve to automatic production line,helps you improve working efficiency.

Parameter

• Model:ZS-YT4T-4D
• Voltage:110/220V 50-60HZ 600W
• Filling Range:5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml:Working Speed
• 20-35bottles/min:Filling Accuracy:≤±1%
• Air Pressure:0.5-0.7MPa
• Size Of Air Compressor Connector:OD 10mm
• Conveyor length:2050mm(standard )
• Conveyor material:Plastic(standard) / stainless steel(custom version)
• Machine Size:About 200*102.5*205cm（100-1000ML）
• Package Size:About 211*114*210cm （100-1000ML）
• Net weight/Gross weight:About 262kg/340kg（100-1000ML）

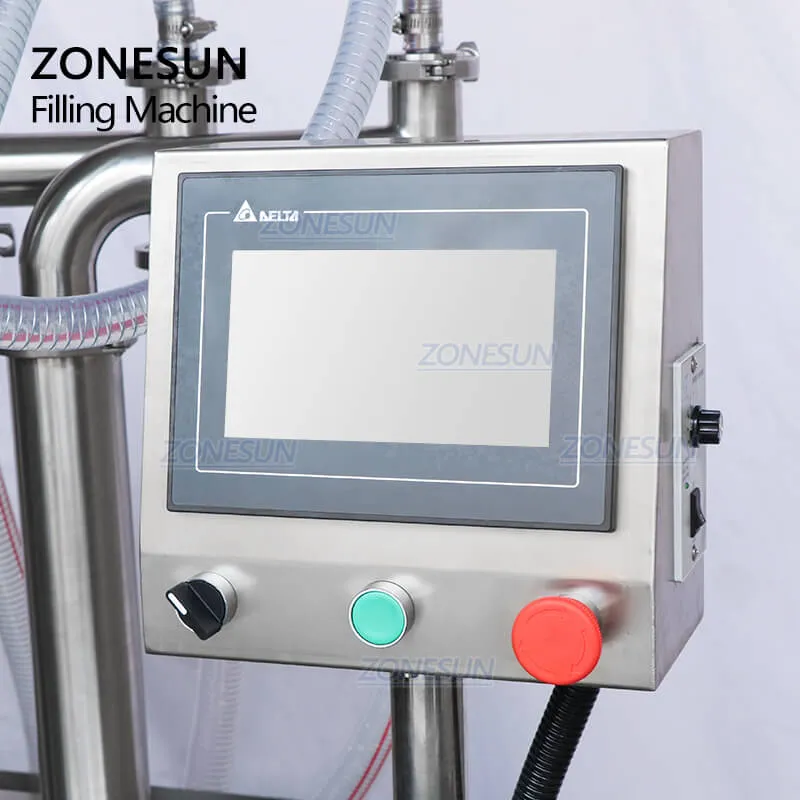

With touch screen control panel,it is more convenient to adjust different kinds of parameter.The visual working data makes the adjustment can be more accurate.This control panel can be set into English version,which can help you control the machine faster.

The sensor is designed fordetecting bottles when they pass through, prevent frommissing or wasting bottles,improves the filling accuracy.

according to your needs, meet the need of mass production.
