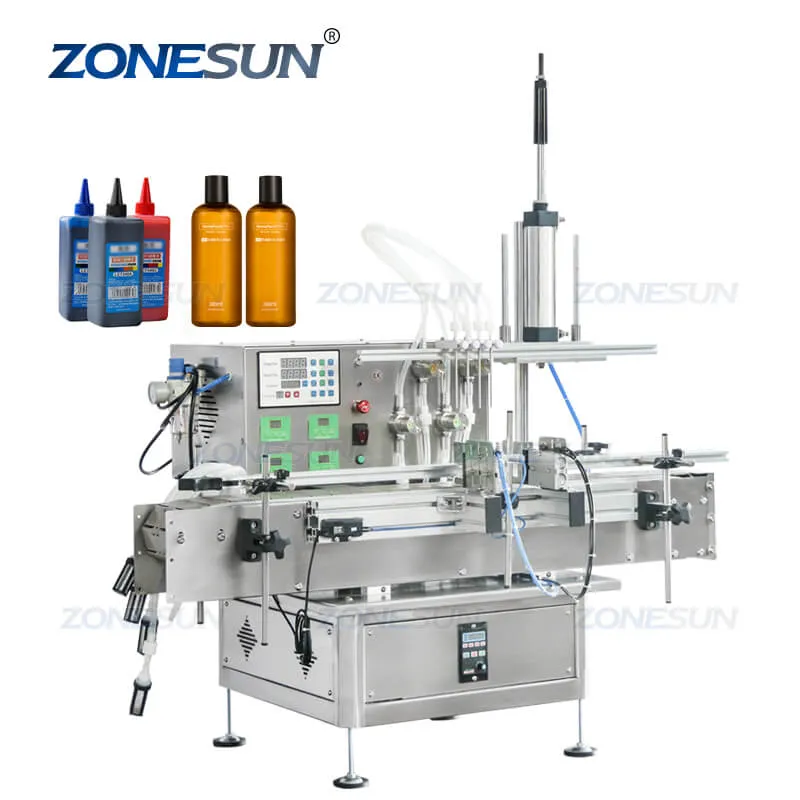

This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt,this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.The magnetic pump filling machine is high precision that it can be used to fill essential oil,solution,eye drops,inks,perfume etc.

Parameter

• Machine model:ZS-DTMP4AL
• Power supply:110/220V 50-60HZ 300W
• Maximum flow velocity:5500ml/min  (Each nozzle and base on water)
• Working speed:20-30 bottles/min
• Air pressure:0.3-0.4MPa
• Filling accuracy:≤±1% (For water)
• Diameter of filling nozzle:6/8mm
• Delay range:0.01-999.9s
• Count range:1-99999 Times
• Filling volume:3-1000ml
• Size of air compressor connector:OD8mm

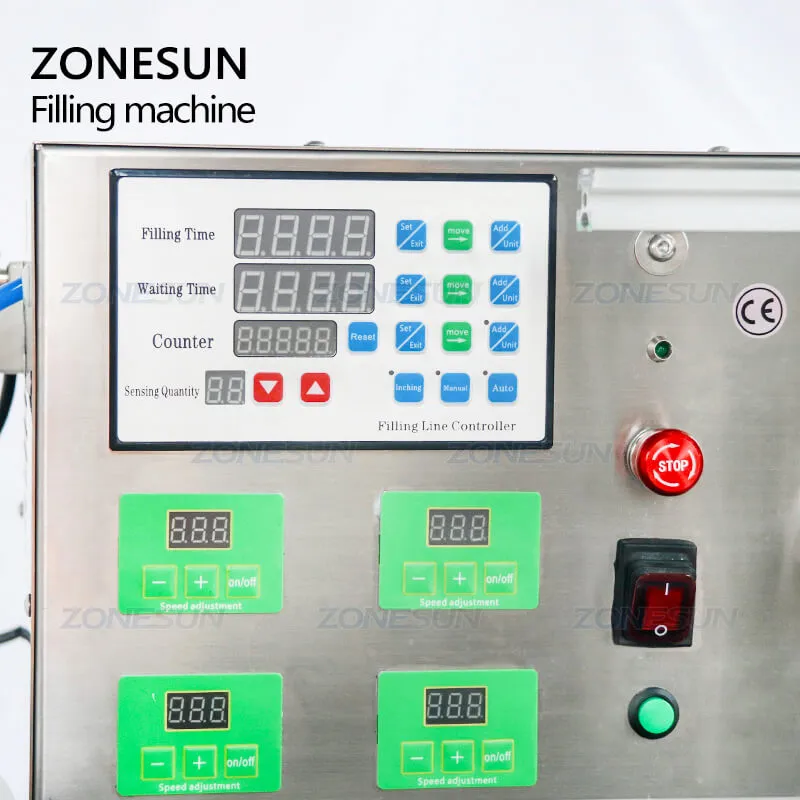

Simple operation panel,can show the detailed setting parameter like the filling time and filling speed,these can be simply controlled according to production need during work.

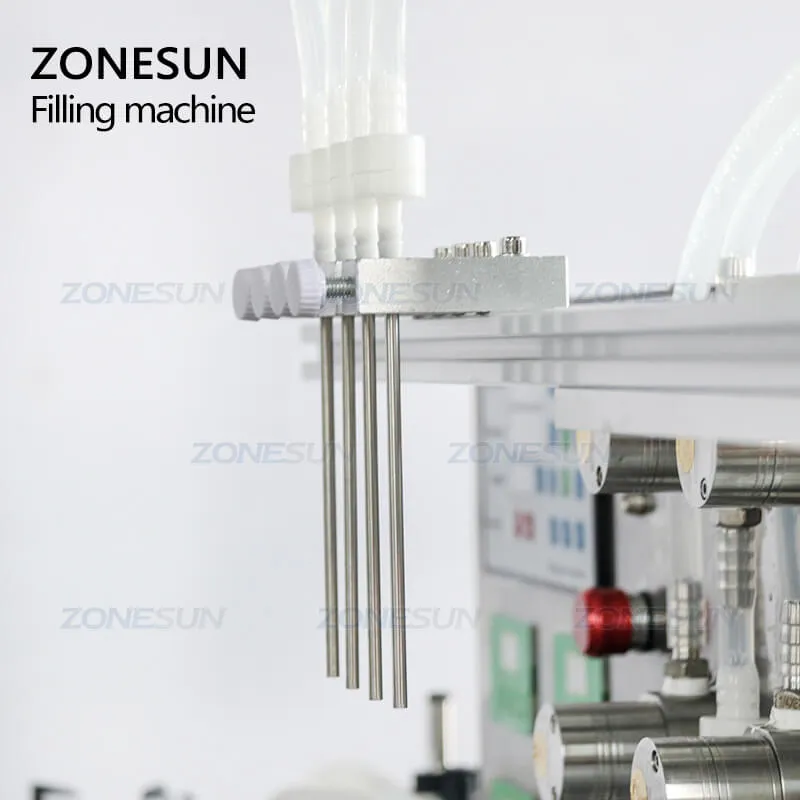

This machine is designed with 4 lifting nozzles,the filling speed and time of each nozzle can be controlled separately. This kinds of filling nozzle is ideal for foamy liquid. We can customize 6 filling nozzle of this machine to achieve efficient production,if you need this please contact us.

Made of high quality stainless steel magnetic pump,this kind of pump requires little maintenance and has the advantage of high accuracy which makes it good for filling solution,essential oil,ink etc.

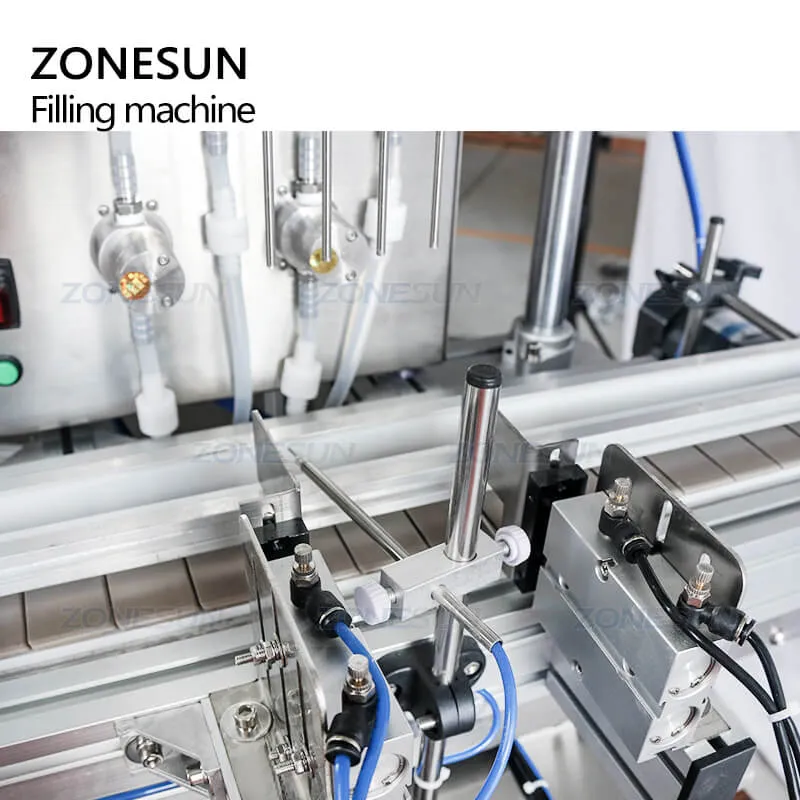

The high quality electric eye can detect passing by containers precisely and control the machine to fill liquid, achieves automated production.This can reduce the production error.

The chain conveyor has larger weight capacity which is good for transport heavier products.Compared with belt conveyor,it is more suitable for large volume products.The conveyor speed can be controlled separately .
