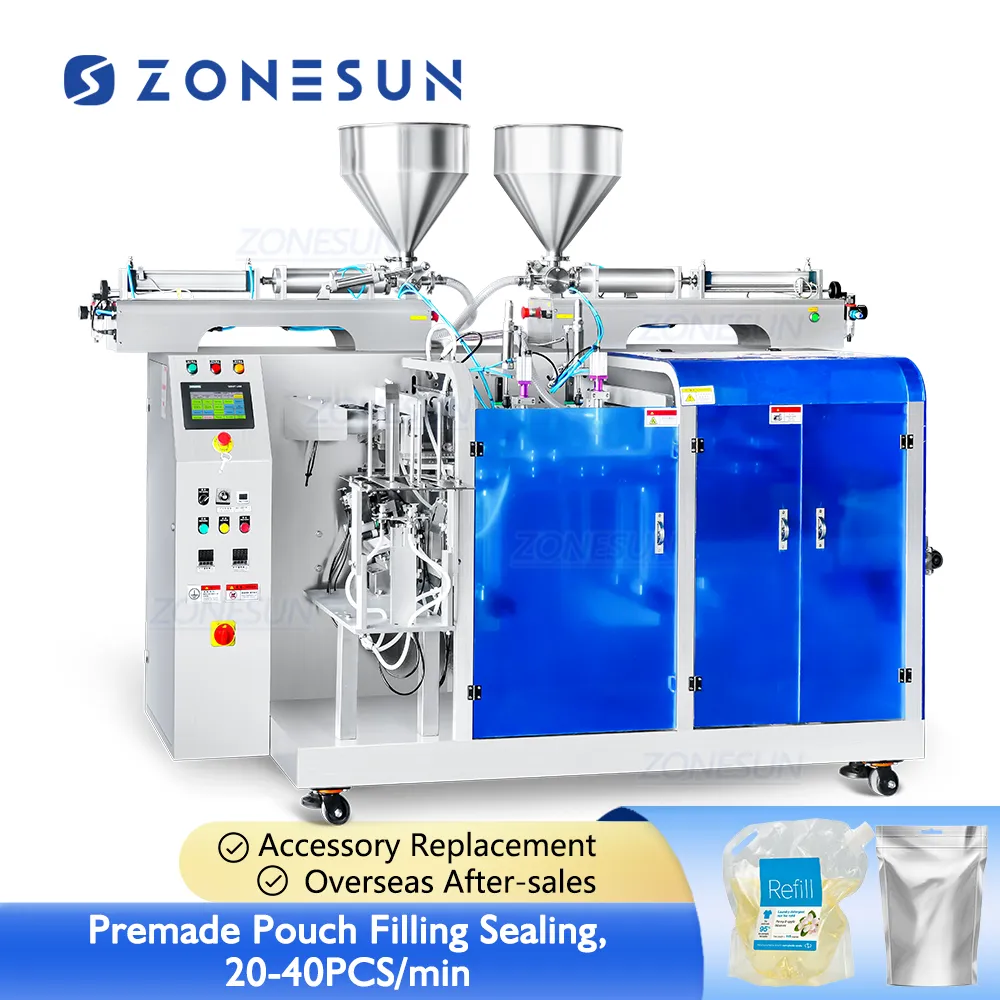

Premade Pouch Filling Sealing Machine Video
A premade pouch filling and sealing machine is a type of packaging equipment used in various industries to automate the filling and sealing of pre-formed pouches or bags. These machines are designed to handle thick liquid or paste packaged in pre-made pouches like yogurt, laundry detergent, juice, cleaner.Double filling heads improves working capacity, it is equipped with piston pump and is more powerful when filling thick liquid or paste.
Parameter
- Machine Model:ZS-AFS03
- Voltage:380V 50Hz
- Power:About 4kW
- Filling Pump:Piston Pump
- Packing Speed:About 20-40pcs/min(depending on pouch size and filling material)
- Filling Range:200-1000ml(Can be customized)
- Suitable Pouch Size:(W)100-220mm*(L)120-350mm
- Air Consumption:0.7m³/min
- Machine Size: About 2450*1450*2080mm

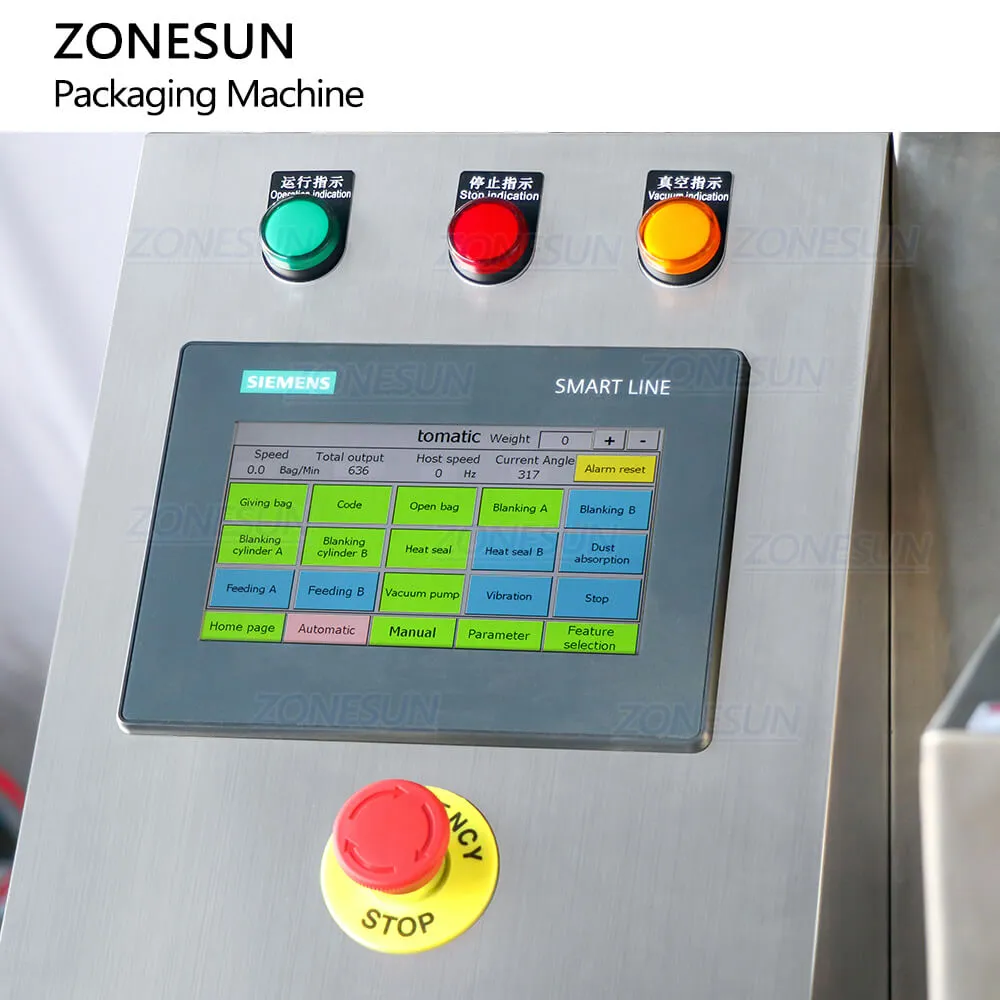

Designed with PLC operation panel, it is convenient to set and adjust working parameters. The language of panel can be customized as your need.

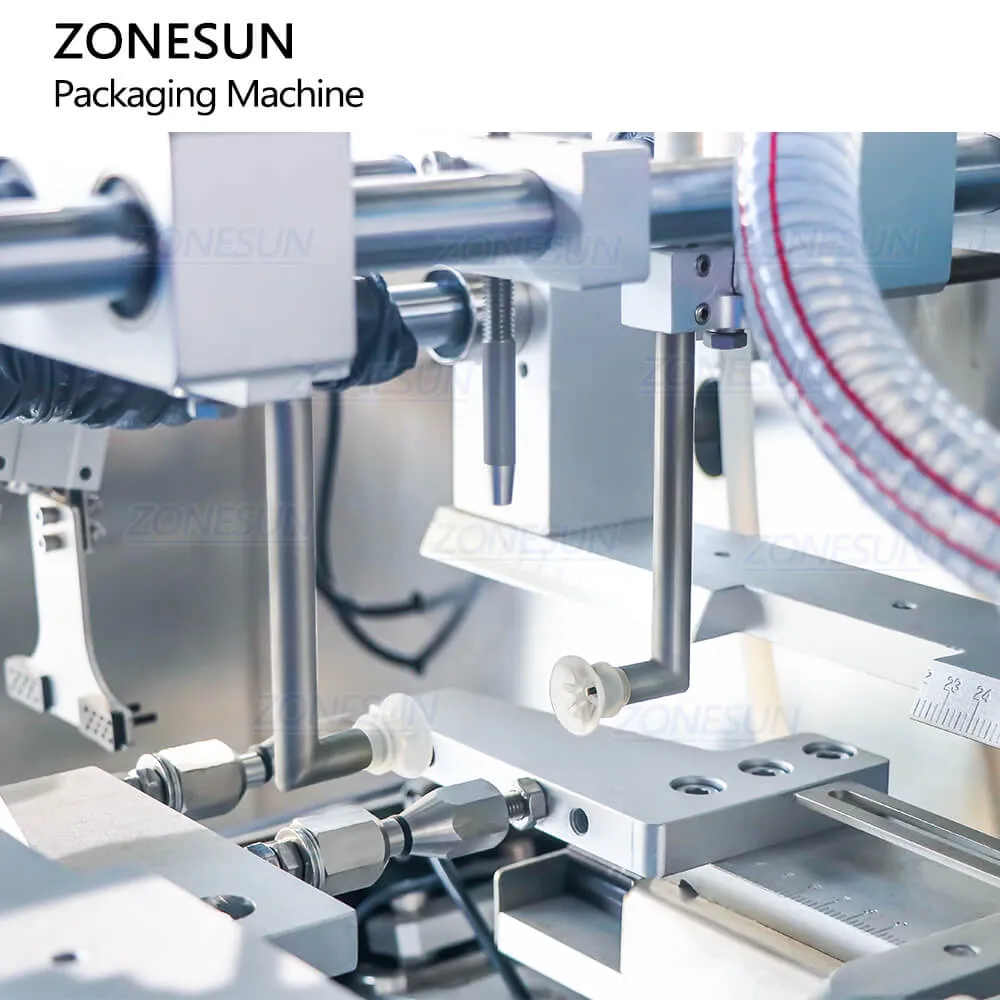

The suction cups are designed for opening premade pouch before filling, helping to save labor cost and improve efficiency.

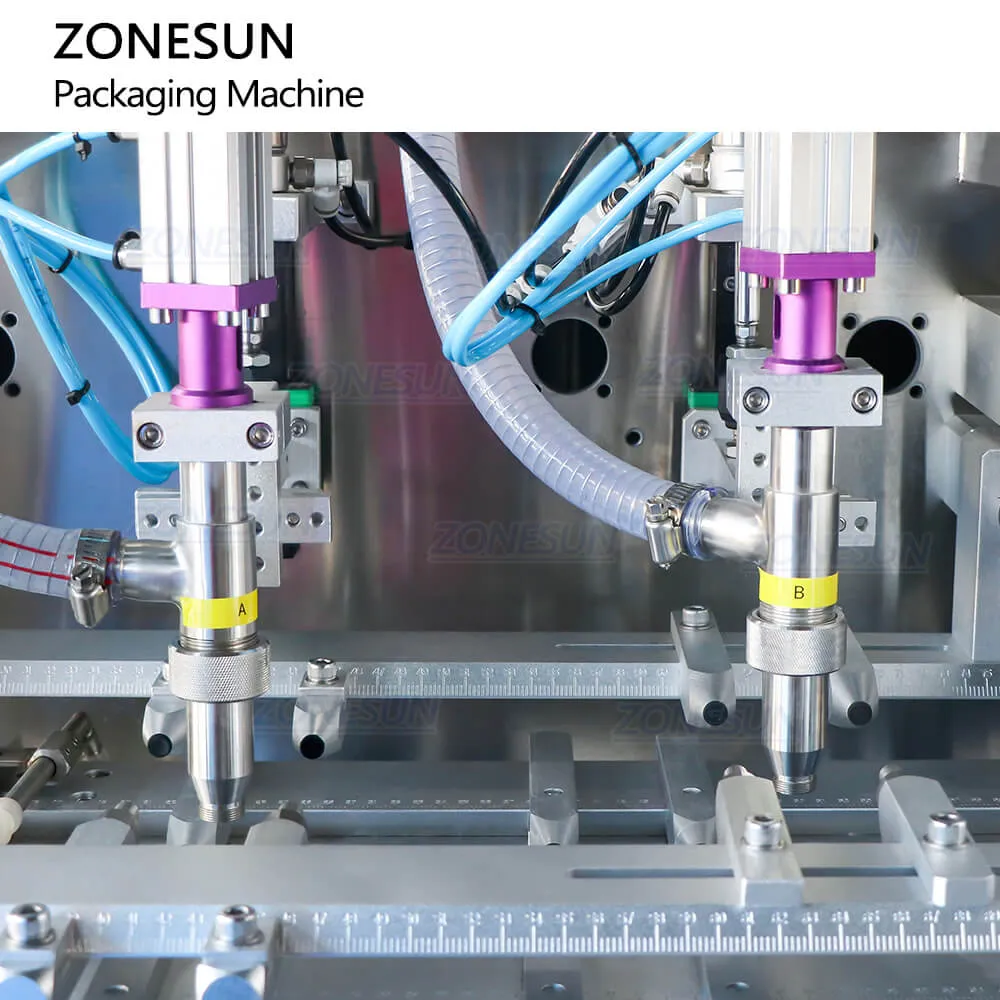

Equipped with pneumatic filling nozzles, this machine can fill thicker liquid or paste like laundry detergent, shampoo. Driven by piston pump, it can fill liquid accurately. The quantity of filling nozzles can be customized.

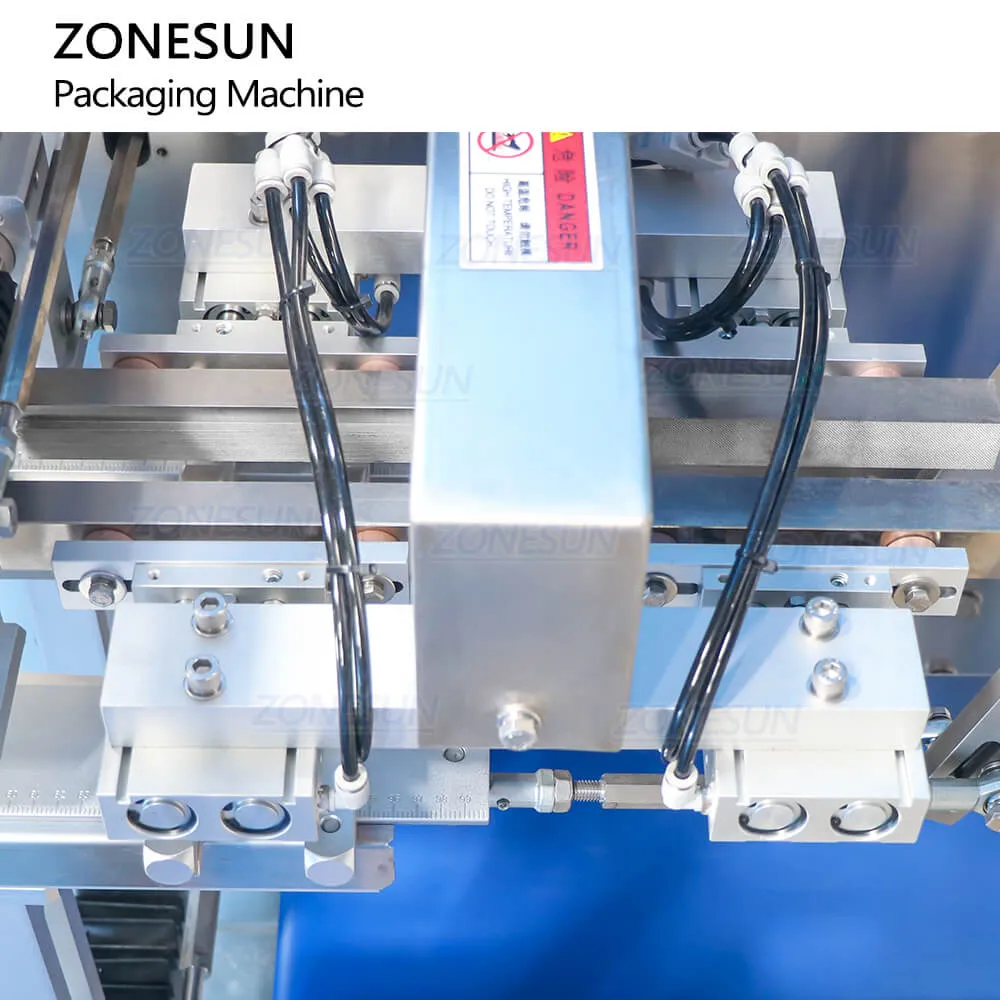

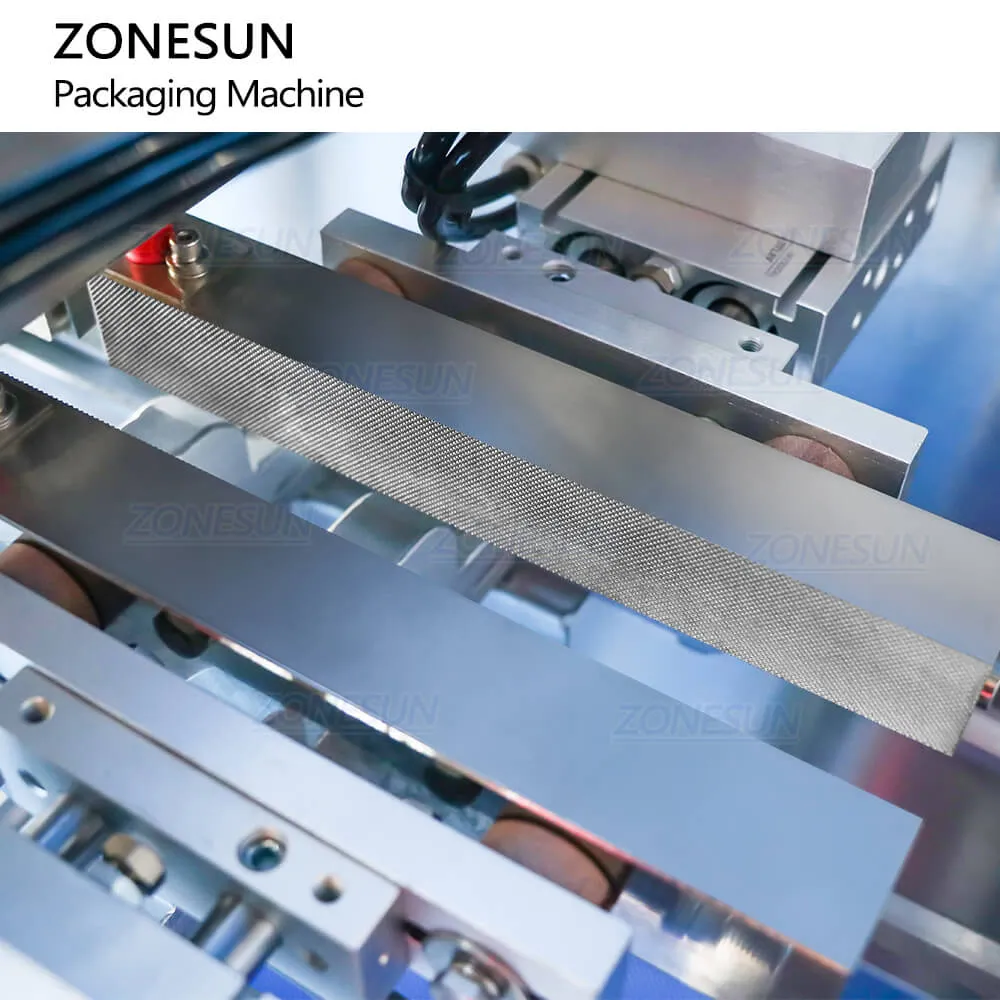

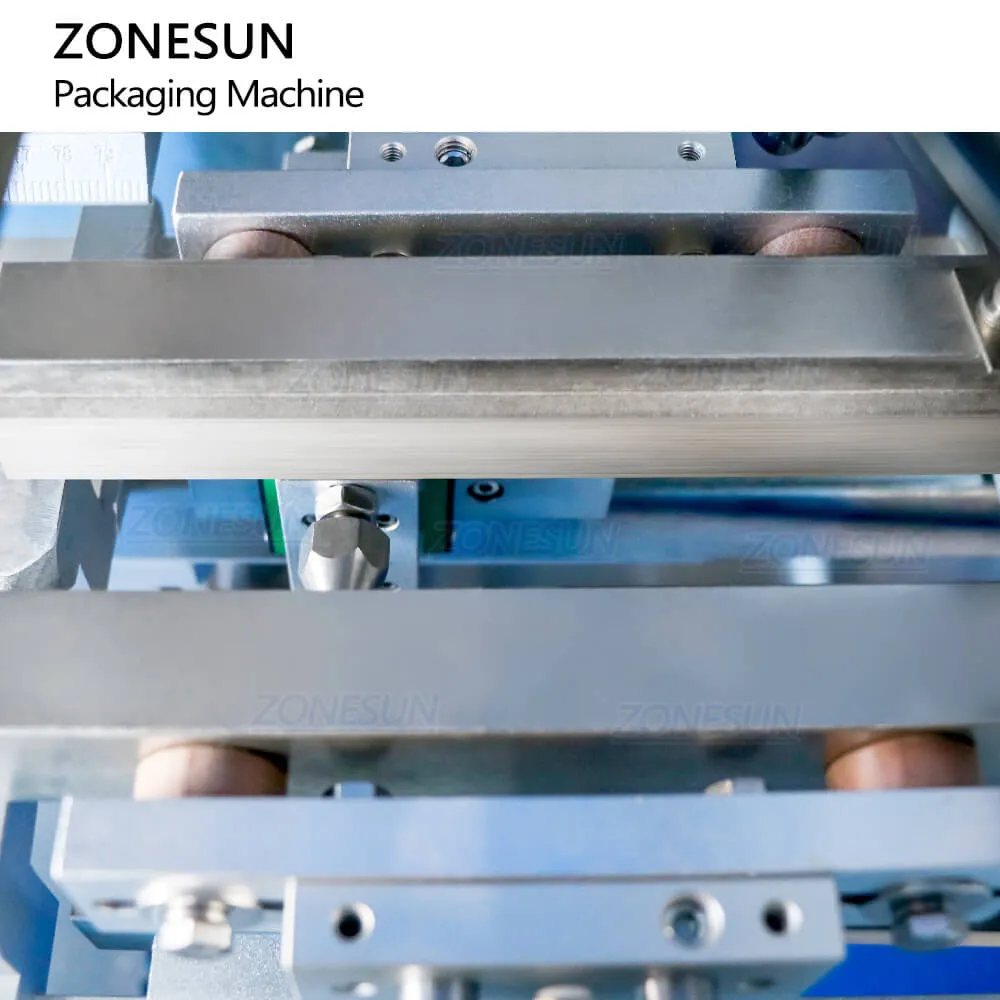

The two sealing structures have different sealing patterns, which can be chosen as production need. Sealing temperature can be set on panel as needed, easy to operate.

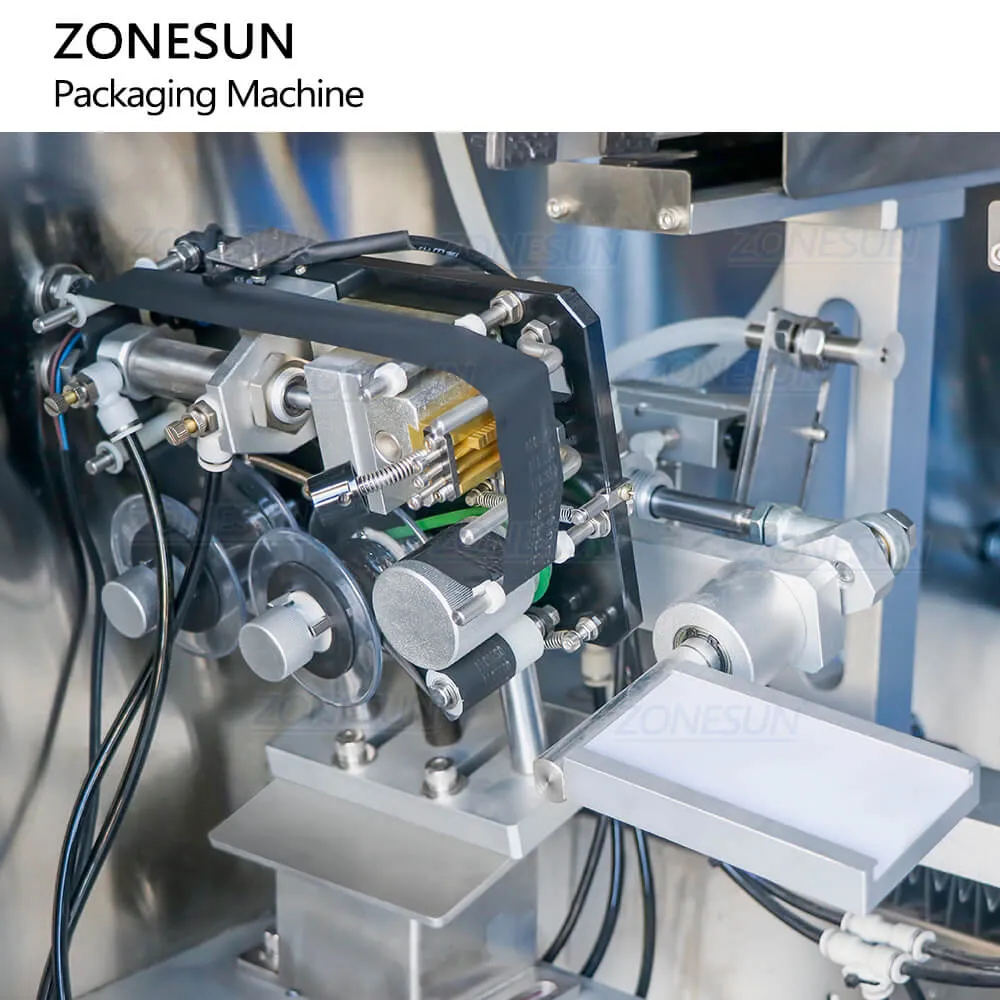

With date coder, it can print production date or batch on pouch automatically, saving labor cost.
