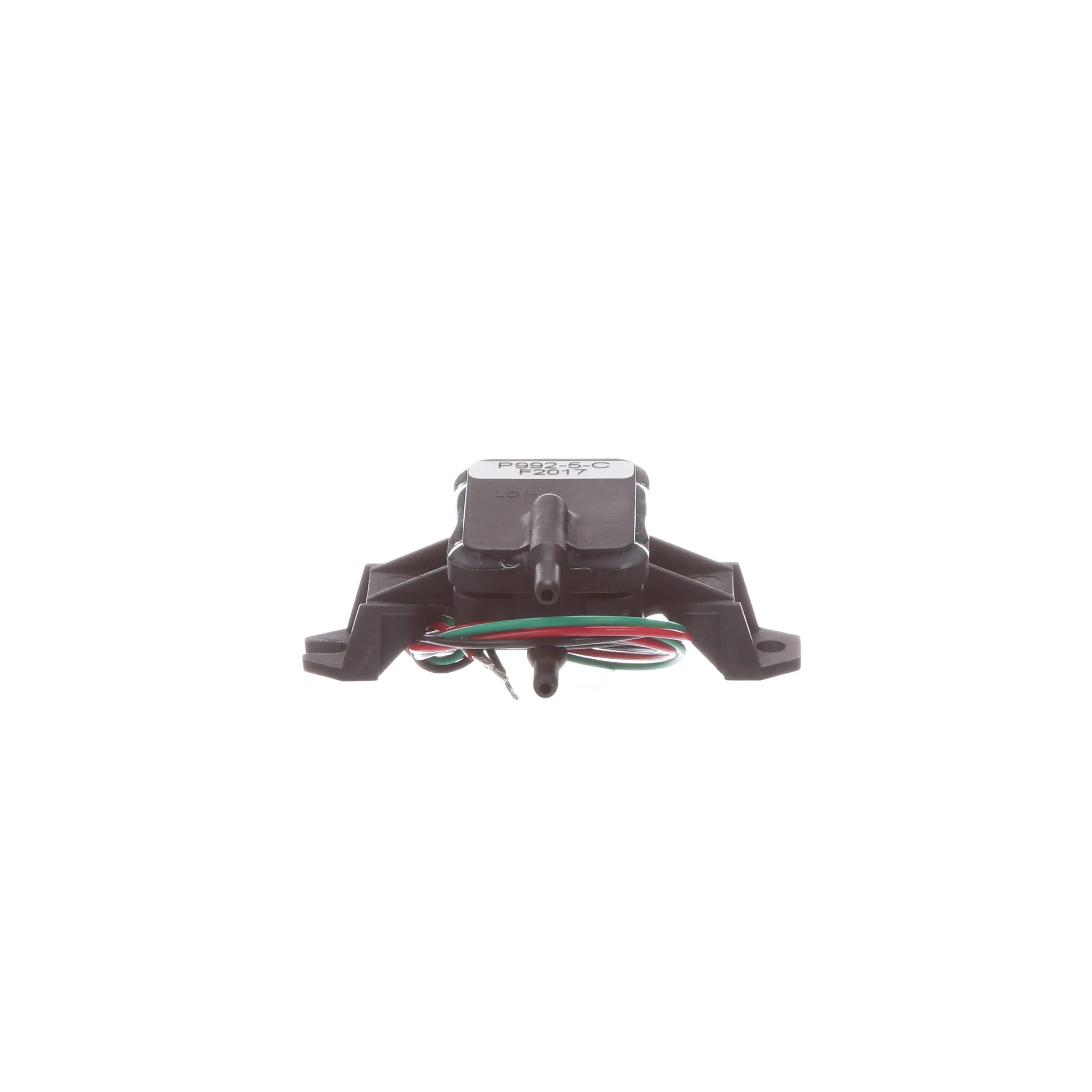

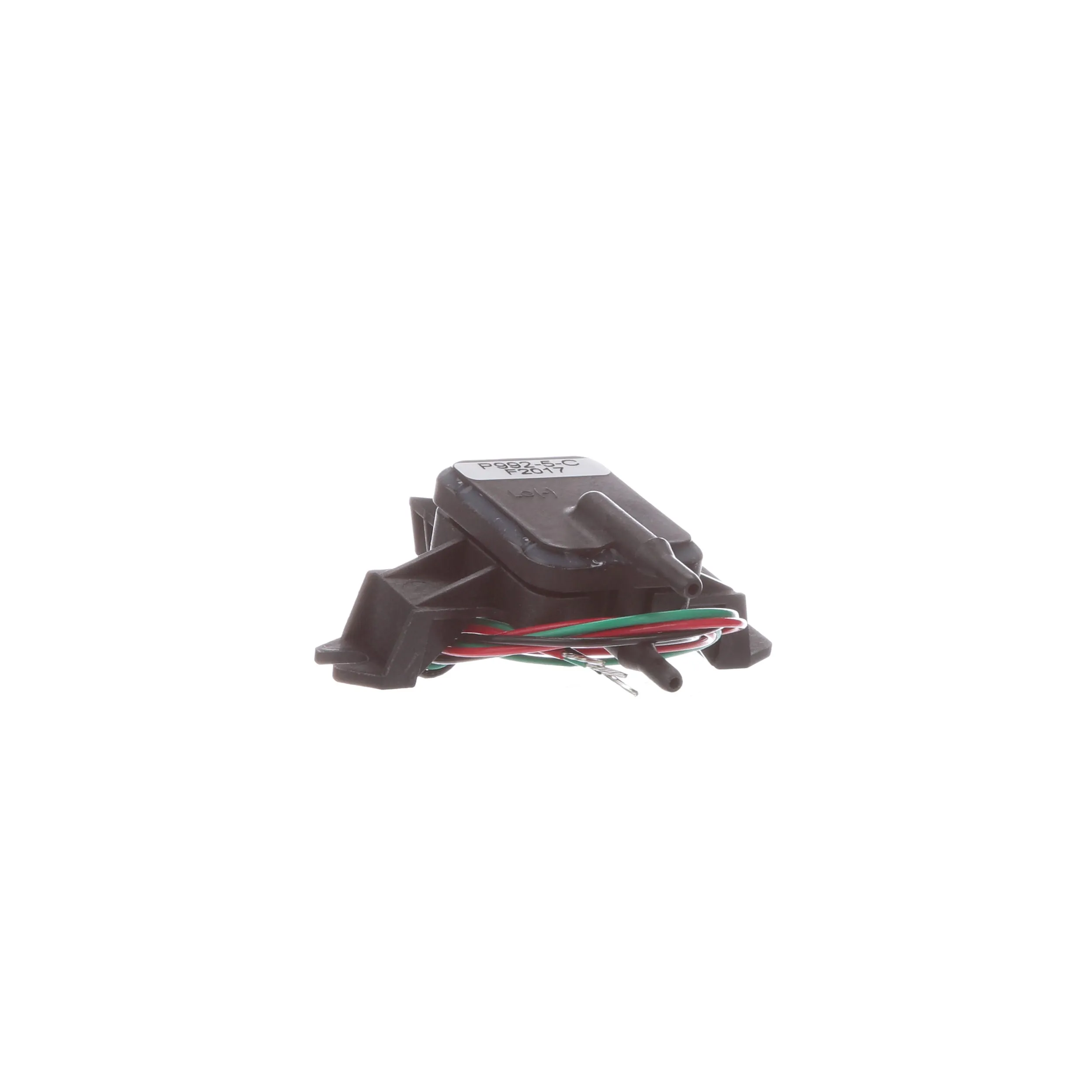

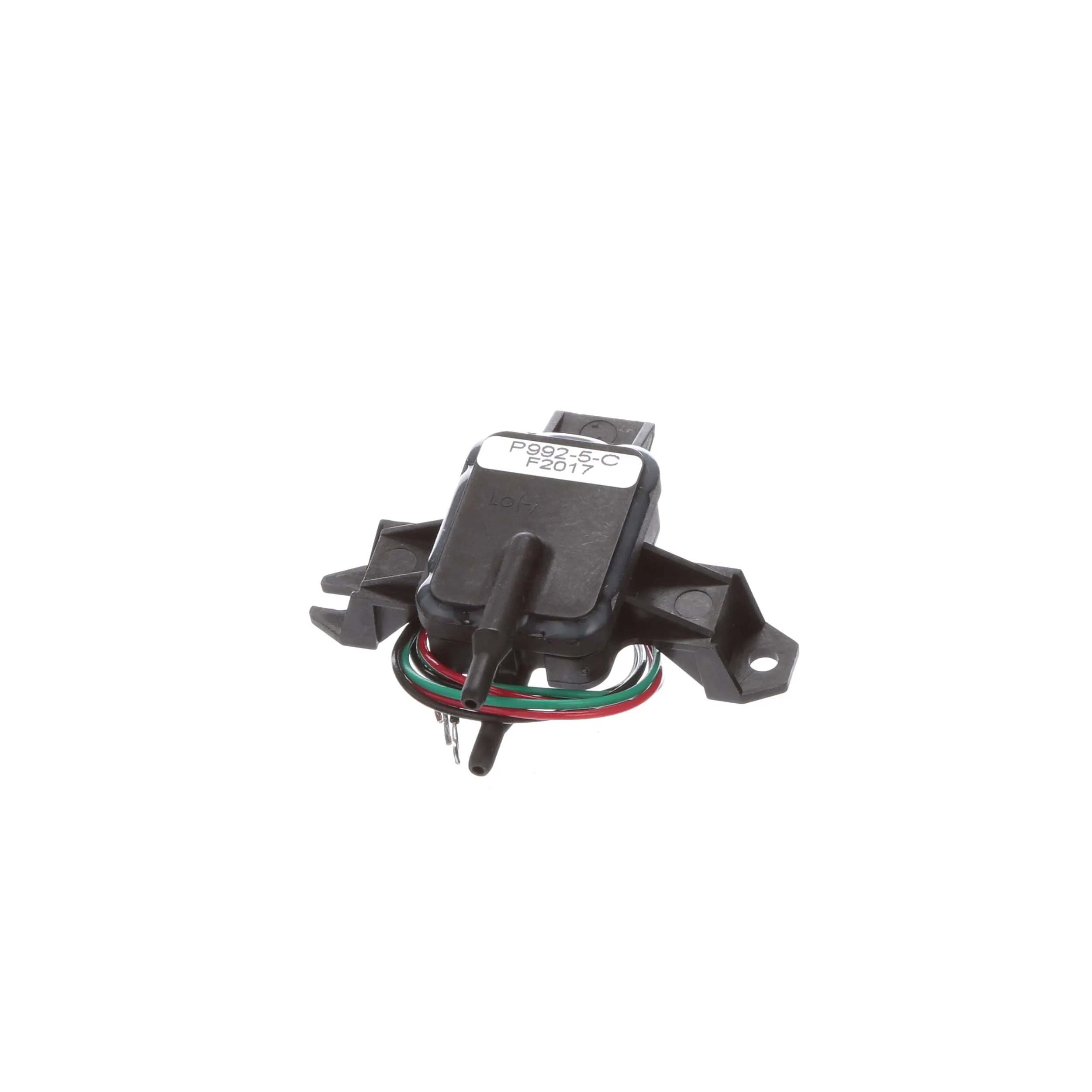

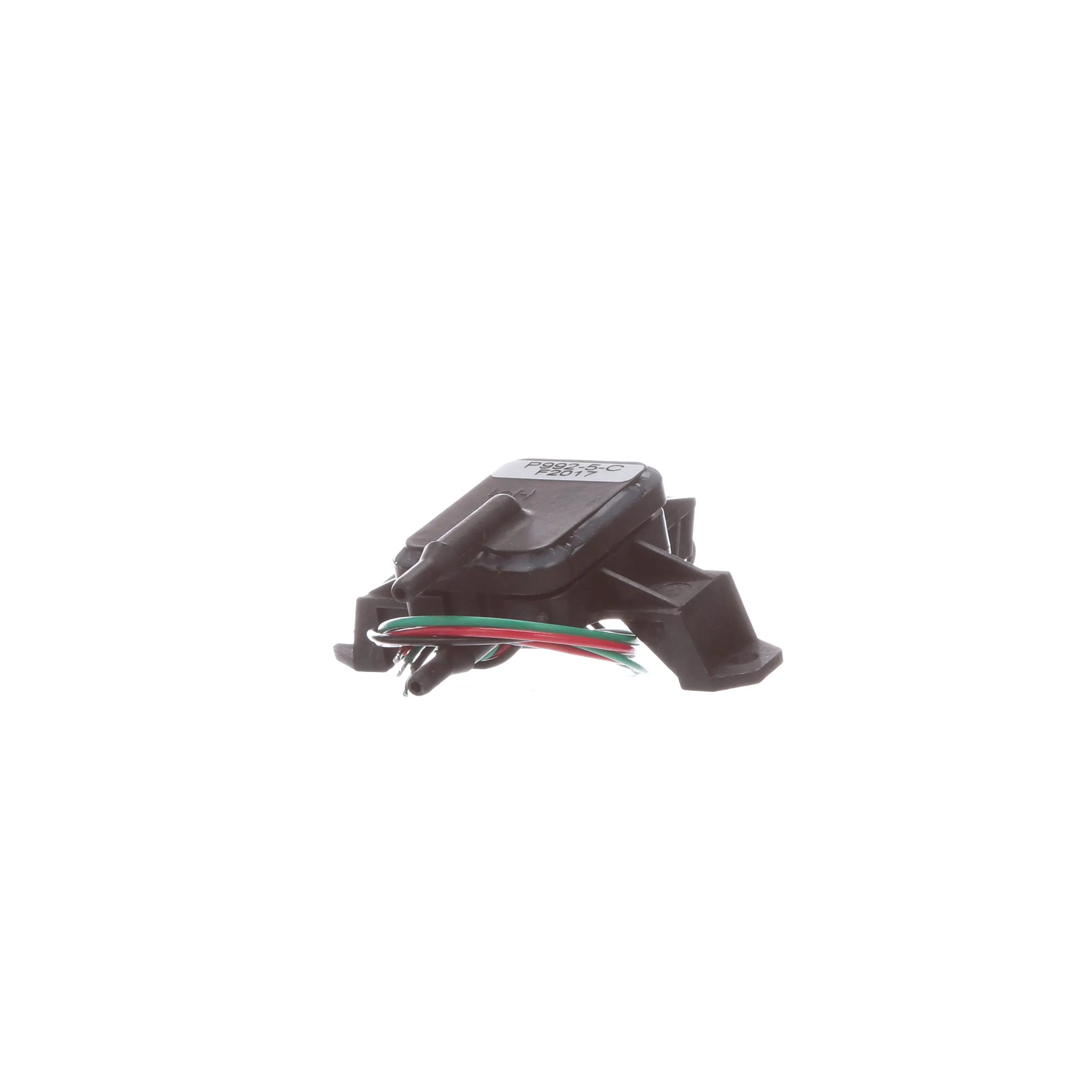

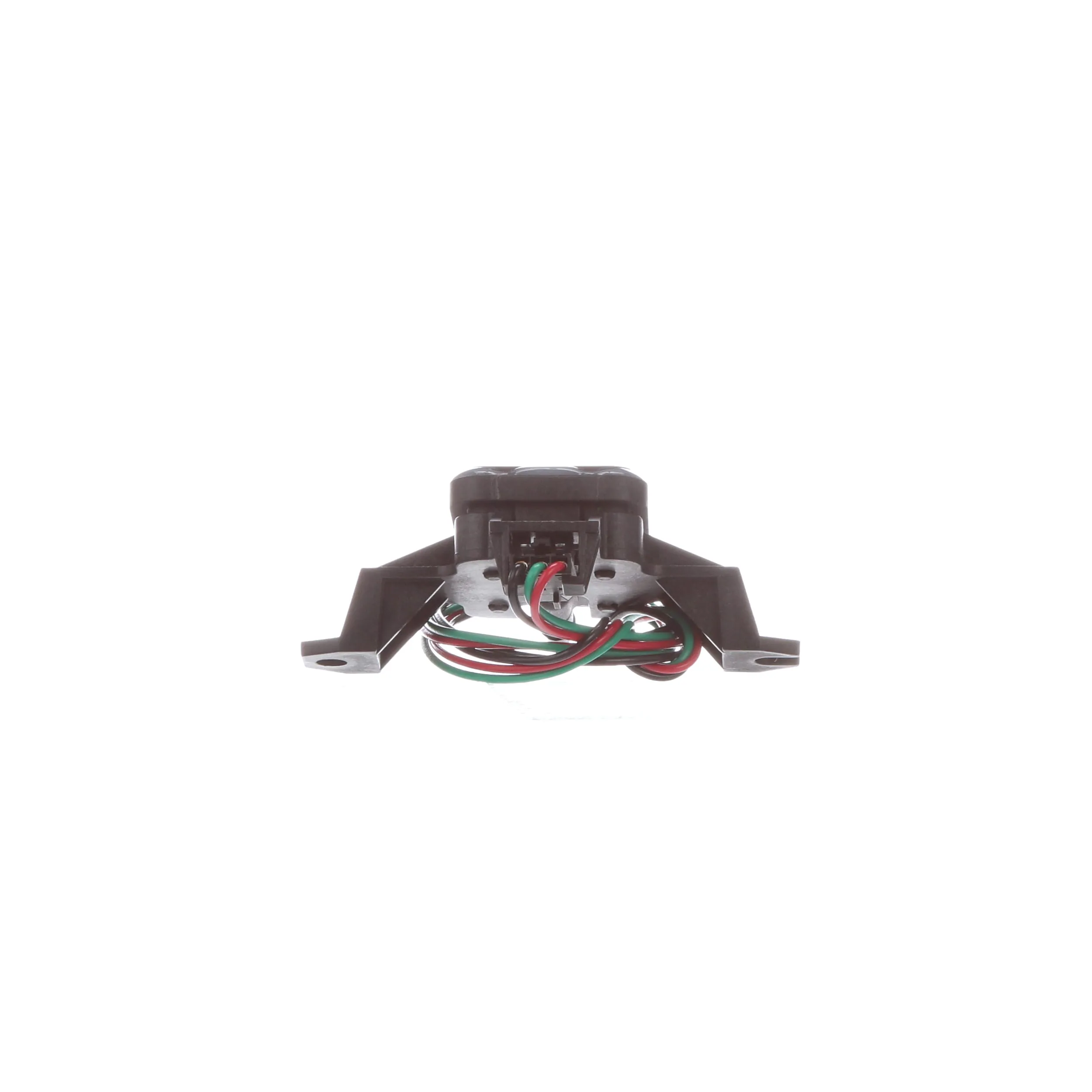

Sensata - Kavlico P992-5-C
Sensata - Kavlico P992-5-C
  • Sensata - Kavlico P992-5-C
  • Sensata - Kavlico P992-5-C
  • Sensata - Kavlico P992-5-C
  • Sensata - Kavlico P992-5-C
  • Sensata - Kavlico P992-5-C
Product Details ＋
Product Attribute Attribute Value
Function Pressure
Measurement Range 0 to 5 inH2O
Measurement Units inH2O
Mounting Type PCB Mount
Output 0.25-4 V
Output Type Ratiometric
Package Type 2-SIP Module
Series
Supply Voltage 5 VDC
Termination Cable
Type Differential

Overview

The product is ideal for Variable Air Volume (VAV) HVAC Systems, duct static pressure measurements and modulated furnace controls and is compatible with dry air and gases. The innovative design eliminates mounting position effects found on other low-pressure differential sensors currently available in the market.

Features:

  • Rugged Package
  • PCB Mount and Cable Attached Configurations
  • Amplified, Temperature Compensated, Linear Output
  • No Position Sensitivity
  • EMI/RFI and ESD Protected
  • Superior Output Signal Stability
  • RoHS Compliant

    Specifications:
  • Differential Pressure Ranges: 2, 5, 10, ±1, ±2 and ±5 (Inches of H20)
  • Supply Voltage: 5.0 ±0.5 VDC
  • Output Voltage: 0.25 to 4.0 VDC
  • Media — Air and Dry, Inert Gasses
    • Sensata - Kavlico P992-5-C
    • DefaultTitle

    $ 53.86

    $ 53.86
