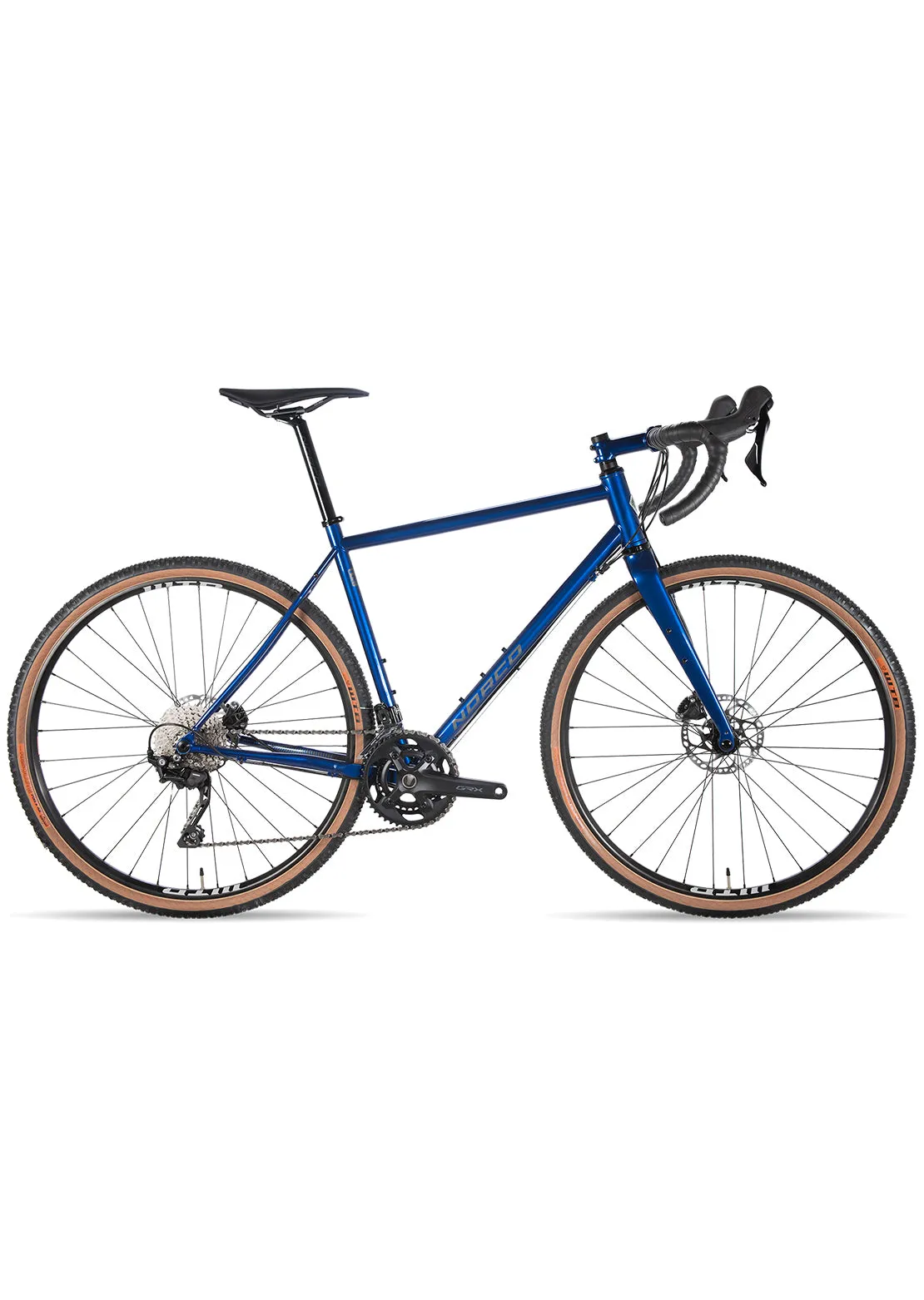

The light, Reynolds air-hardened, back-tempered 725 chromoly frame and mid-modulus carbon fork offer agile stability, efficient pedaling, and comfortable vertical compliance and classic style.
With generous tire clearance, rack, fender and bottle mounts, and a comfortably quick rider compartment, the Search XR S2 allows you to explore singletrack trails, tackle a gravel loop, or head out for an extended bike-packing excursion.
With Shimano thru-axle hubs, WTB ST Light i23 TCS 2.0 tubeless-ready rims and ultra-wide range Shimano GRX 20 speed gravel group, the Search XR S2 is ready to take on whatever adventure you’re up for. Its external cable routing makes for quick, easy service when the opportunity arises.
F
STEEL FRAME, CARBON FORKHeat-treated, back-tempered Reynolds 725 steel features thinner tubes to reduce weight and retain strength. Curved seat stay tubing enhances the material’s comfort, while the carbon fork reduces road vibrations up front for a lively, comfortable ride.
DESIGNED FOR ADVENTURE
Designed to excel on rougher surfaces, Search XR geometry is a little slacker and longer than conventional road bikes, creating a stable ride.
STYLISH, RESILIENT STEEL FRAME
Front and rear 12mm thru axles plus an oversized head tube junction, downtube, BB shell and chainstays deliver lateral stiffness for maximum power transfer and added control through rough terrain.
EXTERNAL ROUTING
External cable housing with cable guides along the downtube ensures easy and quick serviceability. The option to run 1x gearing creates an even cleaner look.
TIRE CLEARANCE
Generous tire clearance lets you customize your Search XR to the type of ride that best suits you, or the ride you’re planning on any given day. Larger tires provide more comfort and control on paved surfaces, and greater traction on off-road or gravel excursions. See Geo Chart for tire clearance details.
ACCESSORY MOUNTS
Multiple bottle cage mounts on the frame and fork, custom low key fender eyelets and stealth rack mounts expand the Search XR’s versatility without sacrificing strength, lightweight or design.
S
FRAMESETFRAME
Reynolds 725 Chromoly Steel
FORKMid-Modulus Carbon
HEADSETFSA 44mm Cartridge Bearing
DRIVETRAINSHIFTER FRONT
Shimano GRX ST-RX400 2 speed
SHIFTER REARShimano GRX ST-RX400 10 speed
FRONT DERAILLEURShimano GRX FD-RX400
REAR DERAILLEURShimano GRX RD-RX400
CASSETTEShimano CS-HG50-10 11-36T
CHAINKMC X10
CRANKSETShimano GRX FC-RX600 46/30T
BOTTOM BRACKETShimano BB-RS500 PressFit BB86
COMPONENTSHANDLEBAR
Norco Super Flare Aluminum, 16deg Flare
BAR TAPENorco Griptacular Shockproof
STEMNorco SL Aluminum - Custom Painted
SEAT POSTNorco SL Aluminum
SEAT POST CLAMPAluminum
SADDLENorco SL Race, Cromo Rails
FRONT BRAKEShimano GRX BR-RX400 Hydraulic Disc
REAR BRAKEShimano GRX BR-RX400 Hydraulic Disc
BRAKE LEVERSShimano GRX RX400 Hydraulic
WHEELSFRONT HUB
Shimano HB-RS470 12x100mm TA
REAR HUBShimano FH-RS470 12x142mm TA
RIMSWTB ST Light i23 TCS 2.0, Black, Tubeless Ready
SPOKES/NIPPLESSapim Race Butted, Black, Black Brass Nipples
FRONT TIREWTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall
REAR TIREWTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall
REAR HUB SKEWERTooled 12x142mm TA
FRONT HUB SKEWERTooled 12x100mm TA
Due to Covid-related scheduling and component availability challenges, Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.
GEOMETRY
CHOOSE YOUR WHEEL SIZE: 650B
|
Frame Size: |
45.5 |
48 |
|
Reach: |
355 |
362 |
|
Stack: |
507 |
526 |
|
Head Tube Angle: |
70.75 |
71.00 |
|
Fork Offset: |
49 |
|
|
Seat Tube Length: |
410 |
435 |
|
Effective Seat Tube Angle: |
74.00 |
73.75 |
|
Rear Centre Length: |
420.0 |
|
|
Bottom Bracket Rise/Drop: |
-57.0 |
|
|
Bottom Bracket Height: |
273 |
|
|
Horizontal Top Tube: |
500 |
515 |
|
Wheel Base: |
980 |
991 |
|
Stand Over: |
635 |
659 |
|
Head Tube Length: |
100 |
120 |
|
Trail: |
63 |
62 |
|
Stem Length: |
80 |
90 |
|
Crank Length: |
165.0 |
170.0 |
|
Max 650b Tire Size: |
47 (38 w/ fender) |
|
|
Max 26" Tire Size: |
2.1" (1.95" w/ fender) |
|
CHOOSE YOUR WHEEL SIZE: 700C
|
Frame Size: |
50.5 |
53 |
55.5 |
58 |
60.5 |
|
Reach: |
375 |
383 |
390 |
399 |
407 |
|
Stack: |
549 |
563 |
583 |
600 |
620 |
|
Head Tube Angle: |
71.00 |
71.50 |
71.75 |
72.00 |
72.25 |
|
Fork Offset: |
49 |
||||
|
Seat Tube Length: |
460 |
490 |
520 |
550 |
580 |
|
Effective Seat Tube Angle: |
74.25 |
73.75 |
73.25 |
73.00 |
72.75 |
|
Rear Centre Length: |
430.0 |
430.0 |
430.0 |
432.5 |
432.5 |
|
Bottom Bracket Rise/Drop: |
-75.0 |
-72.5 |
-72.5 |
-70.0 |
-70.0 |
|
Bottom Bracket Height: |
277 |
280 |
280 |
282 |
282 |
|
Horizontal Top Tube: |
530 |
548 |
565 |
583 |
600 |
|
Wheel Base: |
1014 |
1023 |
1033 |
1050 |
1062 |
|
Stand Over: |
688 |
718 |
745 |
775 |
803 |
|
Head Tube Length: |
110 |
125 |
145 |
165 |
185 |
|
Trail: |
69 |
66 |
64 |
63 |
61 |
|
Stem Length: |
90 |
100 |
100 |
110 |
110 |
|
Crank Length: |
170.0 |
172.5 |
172.5 |
175.0 |
175.0 |
|
Max 700c Tire Size: |
42 (40 w/ fender) |
||||
|
Max 650b Tire Size: |
51 (48 w/ fender) |
||||
