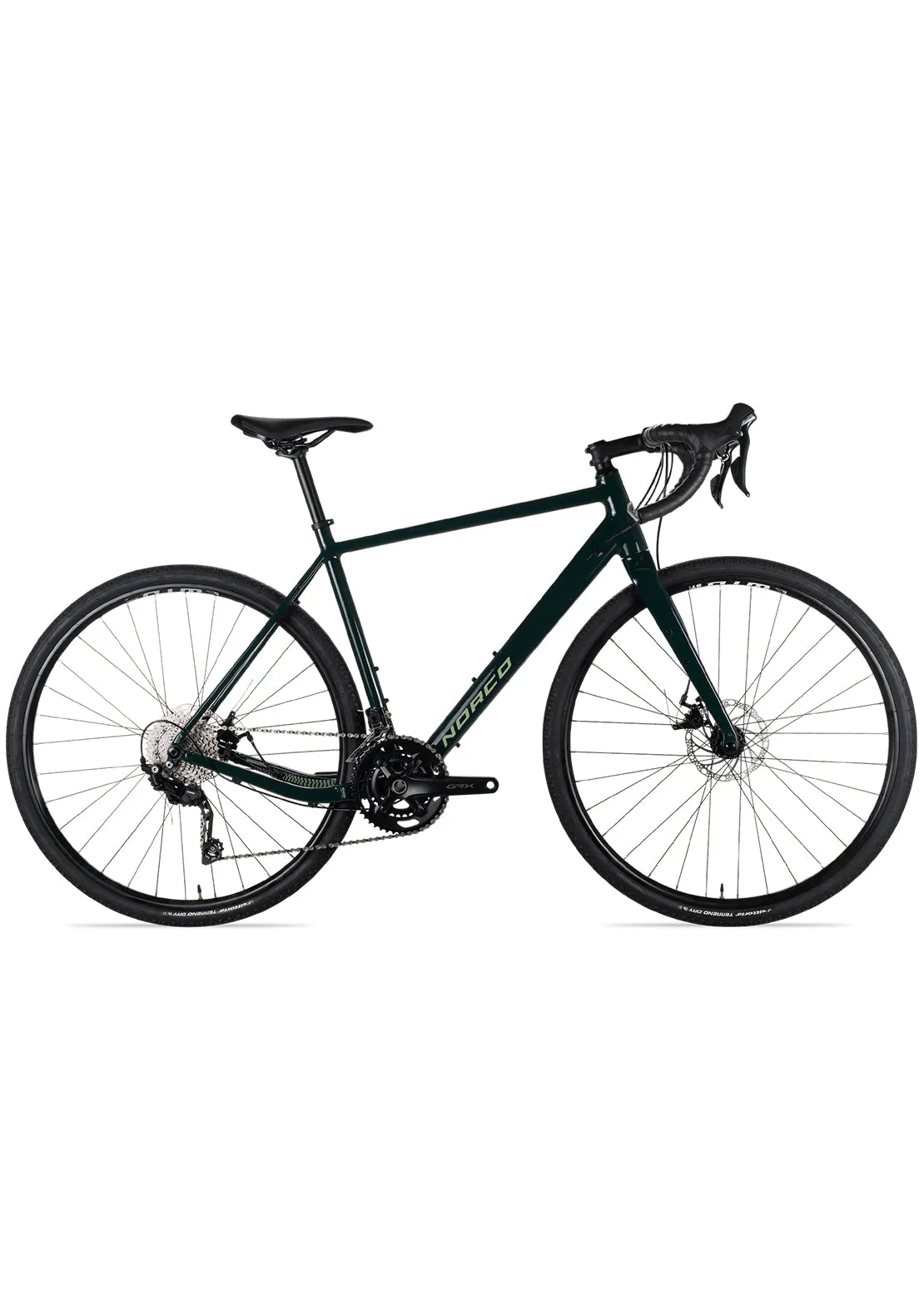

The X6 butted aluminum frame and carbon fork offer lightweight, agile stability, efficient pedaling, and comfortable vertical compliance.

With generous tire clearance, rack, fender and bottle mounts, and a comfortably quick rider compartment, the Search XR A2 allows you to explore singletrack trails, tackle a gravel loop, or head out for an extended bike-packing excursion.

With thru-axle hubs, WTB ST i23 TCS 2.0 tubeless-ready rims, a wide range Shimano GRX/Tiagra 20-speed drivetrain and Tektro dual piston mechanical disc brakes, the Search XR A2 is ready to take on whatever adventure you’re up for.

The internally routed cables keep critical mechanical systems away from the elements on those especially adventurous adventures.

F

SEARCH XR ALUMINUM FRAME

Smooth welded, lightweight aluminum frame creates a robust, elegant looking adventure rig. Bent chain stays, thinned seat tube and top tube, and optimized fork designs maximize comfort and reduce rider fatigue.

DESIGNED FOR ADVENTURE

Designed to excel on rougher surfaces, Search XR geometry is a little slacker and longer than conventional road bikes for a confident ride.

VERSATILE PERFORMANCE & POWER TRANSFER

Front and rear thru-axles, oversized downtube, BB shell and chainstays deliver lateral stiffness for maximum power transfer and control over rough terrain.

INTERNAL ROUTING

Internal cable routing with adaptable port covers keeps cables tight and secure and prevents water from entering the frame. The Search XR is also compatible with a wide range of configurations such as 1x or 2x drivetrains.

MULTIPLE CONFIGURATIONS

The Search XR aluminum models are spec’d with flared drop bars, with an available a flat bar model, and the Search XR Suspension features a 50mm gravel-specific SR Suntour suspension fork.

TIRE CLEARANCE

Generous tire clearance lets you customize your Search XR to the type of ride that best suits you, or the ride your planning on any given day. Larger tires provide more comfort and control on paved surfaces, and greater traction on off-road or gravel excursions. See Geo Chart for tire clearance details.

ACCESSORY MOUNTS

Multiple bottle cage mounts on the frame & fork, custom removable fender bridge mount, and stealth rack & fender mounting points expand Search XR’s versatility.

S

FRAMESET
FRAME

Butted X6 Aluminum, Smooth Welds

FORK

Search XR Carbon

HEADSET

Integrated Sealed Bearing

DRIVETRAIN
SHIFTER FRONT

Shimano Tiagra ST-4700

SHIFTER REAR

Shimano Tiagra ST-4700

FRONT DERAILLEUR

Shimano GRX FD-RX400

REAR DERAILLEUR

Shimano GRX RD-RX400 Shadow RD

CASSETTE

Shimano CS-HG50, 11-36T, 10 Speed

CHAIN

KMC X10

CRANKSET

Shimano GRX FC-RX600, 46/30T, 170mm (50.5), 172.5mm (53, 55.5), 175mm (58, 60.5)

BOTTOM BRACKET

Shimano BB-RS500 PF86

COMPONENTS
GRIPS

Norco Griptacular Shockproof Tape

HANDLEBAR

Norco Super Flare Aluminum, 16deg Flare, 42cm (45.5, 48, 50.5), 44cm (53, 55.5), 46cm (58, 60.5)

STEM

Norco SL Aluminum

SEAT POST

Norco Aluminum, 27.2mm

SADDLE

Selle Royal Vivo, Mag Rails

FRONT BRAKE

Tektro MD-C550 Dual-Piston Mechanical Disc

FRONT BRAKE ROTOR

Tektro 160mm

REAR BRAKE

Tektro MD-C550 Dual-Piston Mechanical Disc

REAR BRAKE ROTOR

Tektro 160mm

BRAKE LEVERS

Shimano Tiagra ST-4700

WHEELS
FRONT HUB

Alloy 12x100mm, 6 Bolt

REAR HUB

Alloy 12x142mm, HG, 6 Bolt

RIMS

WTB ST i23 TCS 2.0 32H, 650b (45.5, 48), 700c (50.5-60.5)

SPOKES/NIPPLES

Sapim Leader Stainless Black

FRONT TIRE

Vittoria Terreno Dry, 38mm

REAR TIRE

Vittoria Terreno Dry, 38mm

RIM TAPE

Nylon

Due to Covid-related scheduling and component availability challenges, Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

GEOMETRY

Frame Size: 700 C	50.5	53	55.5	58	60.5
Reach:	396	398	400	409	417
Stack:	547	563	580	600	620
Head Tube Angle:	71.00	71.50	71.75	72.00	72.25
Fork Offset:	49
Seat Tube Length:	460	490	520	550	580
Effective Seat Tube Angle:	74.25	73.75	73.25	73.00	72.75
Rear Centre Length:	422.5	422.5	425.0	425.0	425.0
Bottom Bracket Drop:	75.0	72.5	72.5	70.0	70.0
Bottom Bracket Height:	279	282	282	284	284
Horizontal Top Tube:	550.0	562.5	575.0	592.5	610.0
Wheel Base:	1026	1030	1038	1052	1064
Stand Over:	687	717	744	774	802
Head Tube Length:	120.0	137.5	155.0	177.5	197.5
Trail:	70	67	65	63	62
Stem Length:	70	80	90	100	100
Crank Length:	170	172.5	172.5	175	175
Water Bottle Compatible:	3 x 620 mL
Max 700c Tire Size:	42c (38c with fender)
