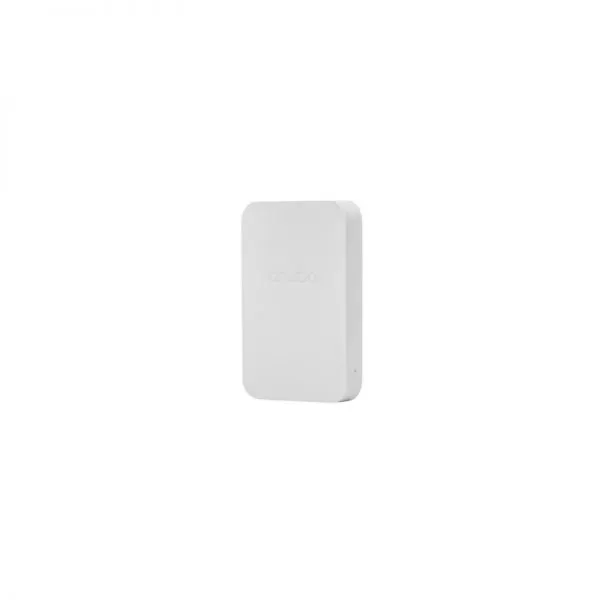

The aruba 203H Series Unified Hospitality Access Points, cost-effective 802.11ac APs with single- or dual-radio mode, deliver high-performance Wi-Fi networking for hospitality and branch offices, while minimizing costs for low-to-moderate density areas.
Miscellaneous
|
Included Accessories |
Wall mounting kit |
|
MTBF |
709,492 hours |
|
Compliant Standards |
EN 60950, IEC 60950, UL 60950, CB, FCC, R&TTE, EN 60601-1-2, cTUVus, EN 60601-1, Directive 2006/95/EEC, Directive 72/23/EEC, EN 300 328, EN 301 489, EN 60601-1-1, EN 301 893, R&TTE Directive 1995/5/EC |
Networking
|
Form Factor |
Wall mountable |
|
Data Transfer Rate |
867 Mbps |
|
Line Coding Format |
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
|
Data Link Protocol |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
|
Spread Spectrum Method |
OFDM, DSSS |
|
Frequency Band |
2.4 GHz, 5 GHz |
|
Performance |
Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps |
|
Capacity |
BSSIDs per radio: 8 |
|
Status Indicators |
Power, system, status |
|
Features |
Auto-uplink (auto MDI/MDI-X), DFS support, wall mountable, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Energy Efficient Ethernet, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), dual-stream (2x2), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), aruba Beacons Bluetooth Low-Energy (BLE) technology, packet aggregation A-MPDU, packet aggregation A-MSDU, wireless intrusion protection, Air Monitor (AM) |
|
Compliant Standards |
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac |
Manufacturer Warranty
|
Service & Support |
Limited warranty - lifetime |
Environmental Parameters
|
Min Operating Temperature |
32 °F |
|
Max Operating Temperature |
104 °F |
|
Humidity Range Operating |
5 - 93% (non-condensing) |
General
|
Device Type |
Wireless access point |
|
Ruggedized Design |
Indoor |
|
Width |
3.4 in |
|
Depth |
1 in |
|
Height |
5.5 in |
|
Weight |
7.94 oz |
|
Localization |
Rwanda |
Expansion / Connectivity
|
Interfaces |
1 x 1000Base-T (PoE) - RJ-45 ¦ 2 x pass-through - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x management (USB) |
Power
|
Power Over Ethernet (PoE) Supported |
PoE |
|
Power Consumption Operational |
7.4 Watt |
Antenna
|
Antenna |
Internal |
|
Antenna Qty |
2 |
|
Gain Level |
6.3 dBi |
Software / System Requirements
|
OS Required |
arubaOS, InstantOS |
