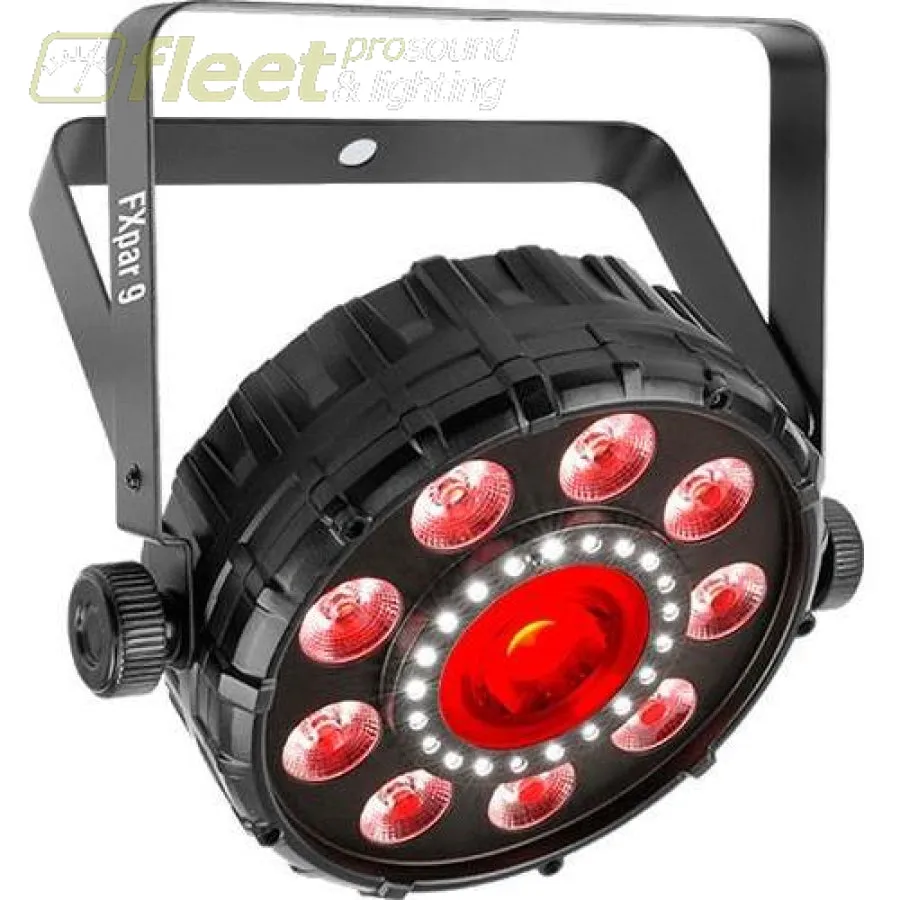

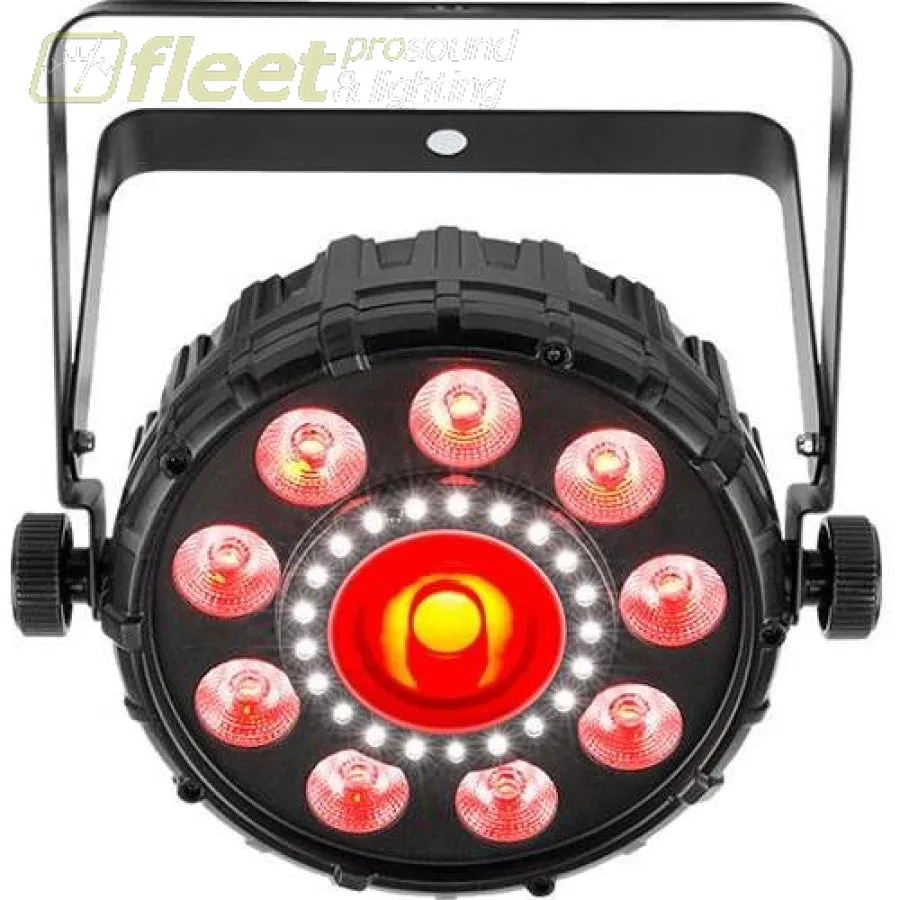

Chauvet Professional FXpar 9 Multi-Effect Fixture

The FXpar 9 combines several dynamic technologies into one compact, low-profile fixture for dynamic lighting effects. Its outer ring of RGB UV LEDs, center LED and SMD strobes can each be controlled independently for unlimited creativity. Mutable zones allow for spectacular effects via DMX. Get started quickly with on-board sound activation and automated programs.

Features:

DMX Channels: 6, 9 or 22

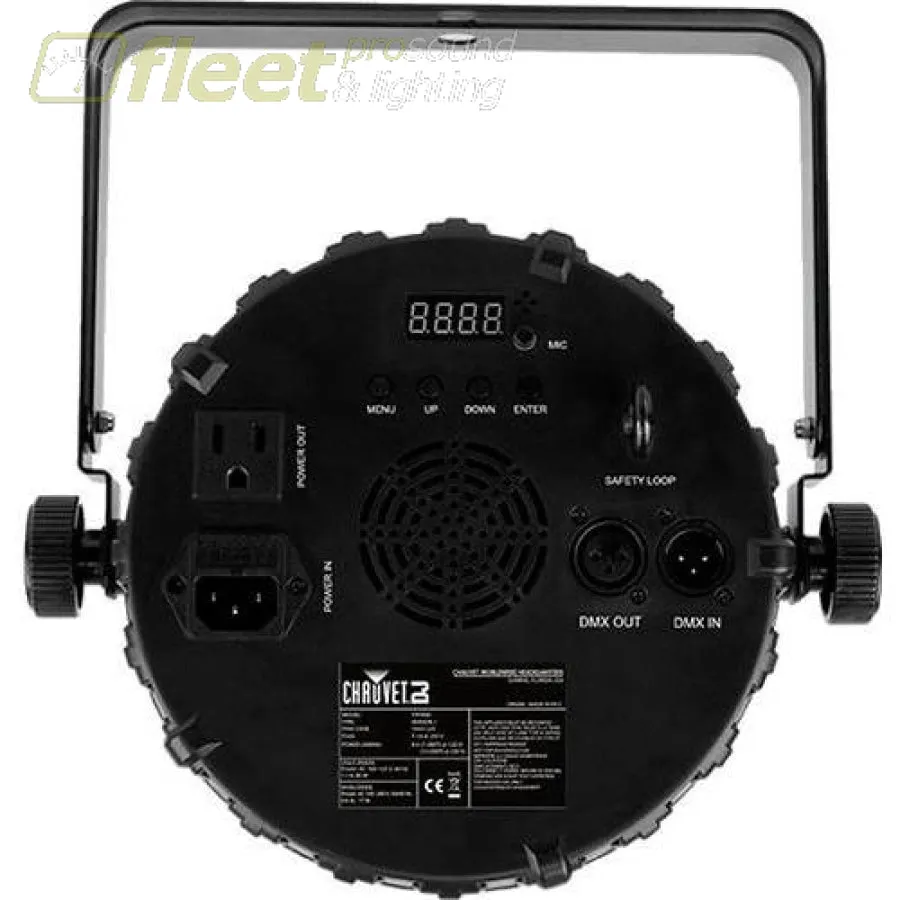

DMX Connectors: 3-pin XLR

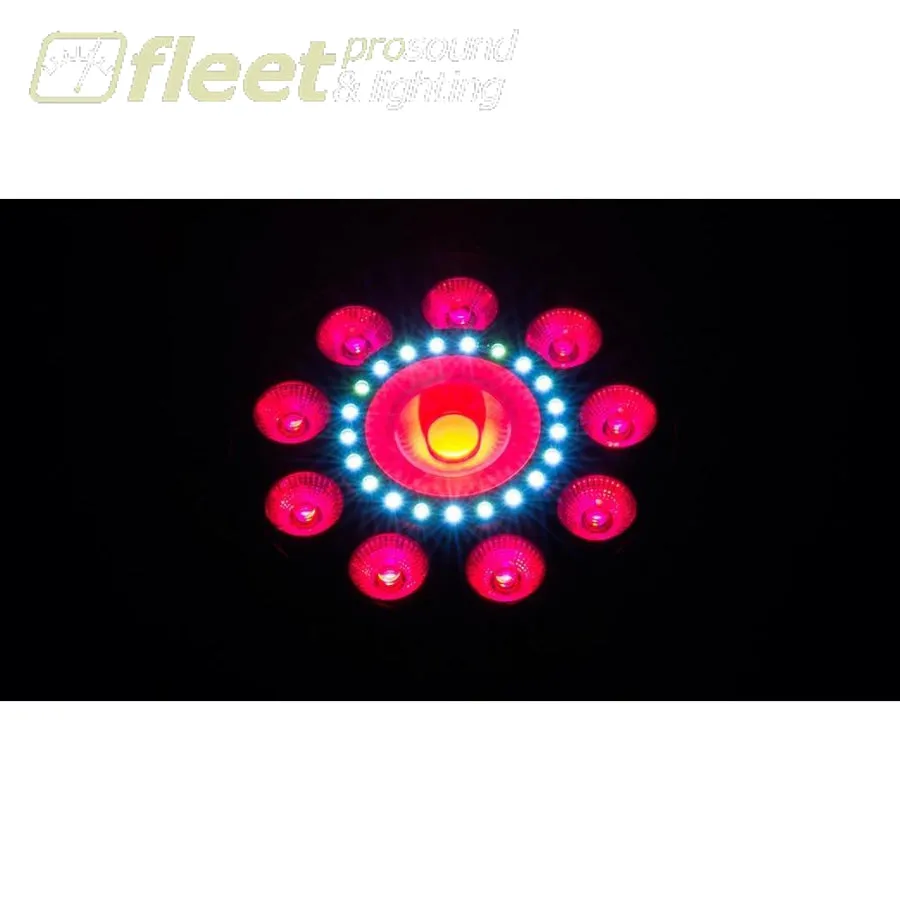

Light Source (outside): 9 LEDs (quad-color RGB UV) 4 W, (1.4 A), 50,000 hours life expectancy.

Light Source (center): 1 LED (tri-color RGB COB) 18.4 W, (2 A), 50,000 hours life expectancy.

Light Source (strobe): 21 LEDs (cool white SMDs) 0.5 W, (0.2 A), 50,000 hours life expectancy.

Strobe Rate: 0 to 16.4Hz

Beam Angle: 25 degrees

Field Angle: 45 degrees

Luminance: 1450 lux @ 2m

Power Linking: 7 units @ 120V; 13 units @ 230V

Input Voltage: 100 to 240 VAC, 50/60Hz (auto-ranging)

Power and Current: 80W, 1.1A @ 120V, 60Hz

Power and Current: 77W, 0.6A @ 230V, 50Hz

Weight: 3.6 lb. (1.6kg)

Size: 10.9 x 10.8 x 2.9 in. (279 x 275 x 74 mm)

Optional Controllers: IRC – 6
