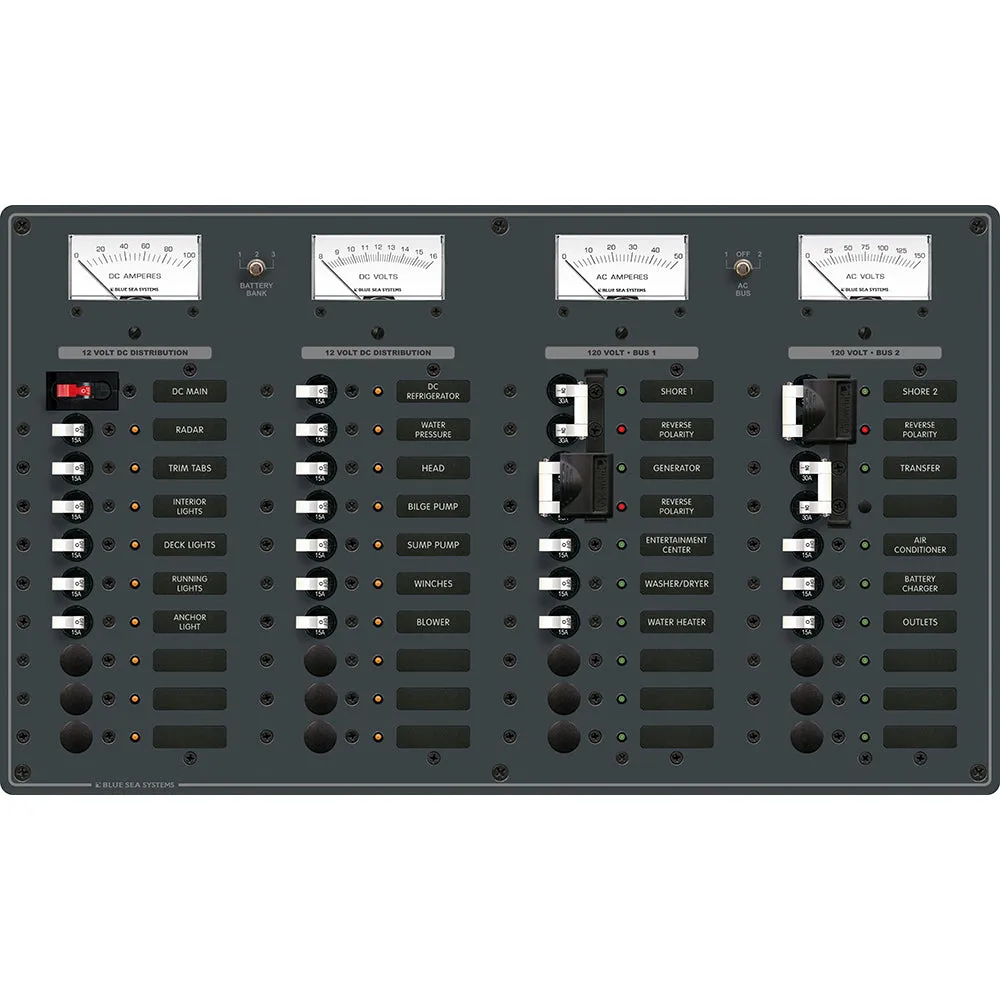

8086 AC 3 Sources 12 Positions/DC Main 19 Position Toggle Circuit Breaker Panel - White Switches

Features:

• Includes set of 30 common AC and 30 common DC labels


• All AC and DC buses installed, fully pre-wired


• Label backlighting pre-installed


• All LEDs installed


• Maximum panel Amperage


  • 100 Amperes DC


  • 50 Amperes AC





AC Features:

• Two separate AC load groups with transfer switch to combine into one load group


• Switch allows Ammeter and Voltmeter to read either AC load group


• Reverse polarity indicators on both AC load groups


• Ready for installation of optional 4031 AC Isolation Cover


• 9353, 0-150 Volt AC Voltmeter


• 9630, 0-50 Amp AC Ammeter

DC Features:

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits


• 8003, 8-16 Volt DC Voltmeter


• 8017, 0-100 Amp DC Ammeter

Specifications:

• AC Positions: Source Selectors 12


• DC Positions: Main 19


• 120 Volts AC


• 12 Volts DC


• (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers


• (1) 100A - (13) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
