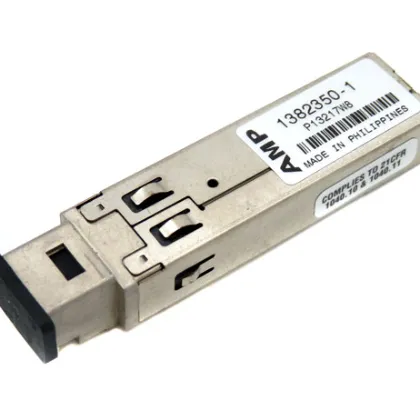

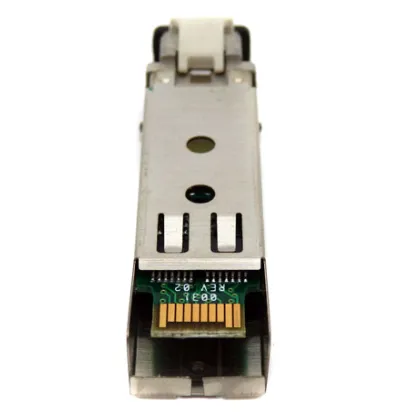

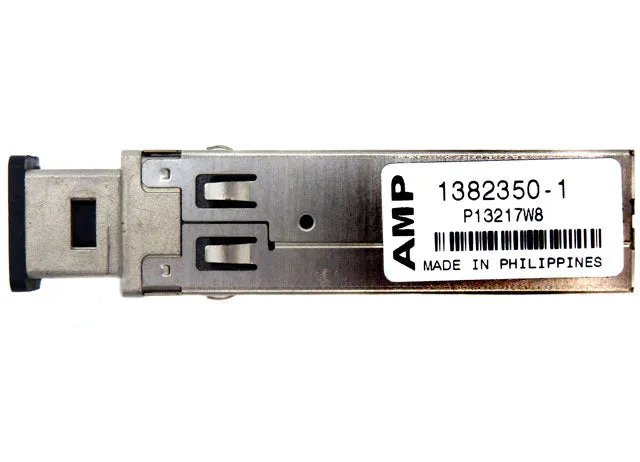

This is an AMP Gigabit Ethernet Multimode SFP MT-RJ transceiver. Its part number is 1382350-1. This is a short wavelength fiber optic transceiver module for use in 1.25Gb/s Gigabit Ethernet and high-speed proprietary link applications. The transceiver sends and receives pre-encoded data. The module, which operates from a single 3.3V power supply, contains separate AC-coupled transmitter and receiver sections that have PECL/LVPEC compatible data interfaces. This item is new and has never been used. It was originally bulk packaged and we have repackaged it for individual sale.

Specifications:

• Complies with IEEE Standard 802.3z Gigabit Ethernet 1000BASE-SX PMD requirements
• Complies with Small Form-factor Pluggable (SFP) Multi-Source Agreement (MSA)
• High density MT-RJ connector interface
• Operates to 550 m with 50/125 µm or 275 m with 62.5/125 µm fiber
• Hot Pluggable Single 3.3-volt power supply
• PECL and LVPECL AC-coupled data Interface
• Transmitter uses 850nm vertical cavity surface emitting laser (VCSEL)
• Class 1 Laser Safe per FDA/CDRHand IEC 60825-1 UL 60950 recognized
• Compatible with standard Gigabit Ethernet chipsets.
• Units are supplied with dust plugs
• Mates to MSA compliant Host
• Connector and Cage Assembly
• Applications
• Switches
• Repeaters
• Network Interface cards
• Hubs
• Routers
