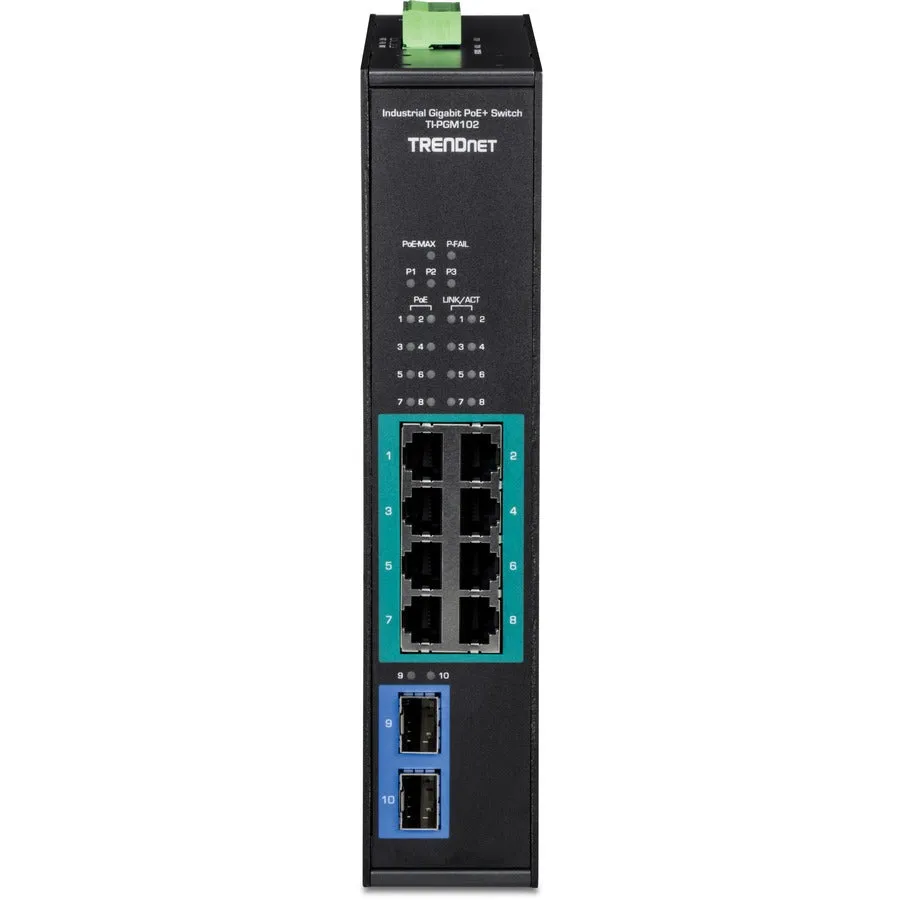

• DEVICE INTERFACE: 8 x Gigabit PoE Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point
• POE POWER & SWITCHING CAPACITY: The industrial PoE switch is equipped with 20Gbps switching capacity, and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE power.

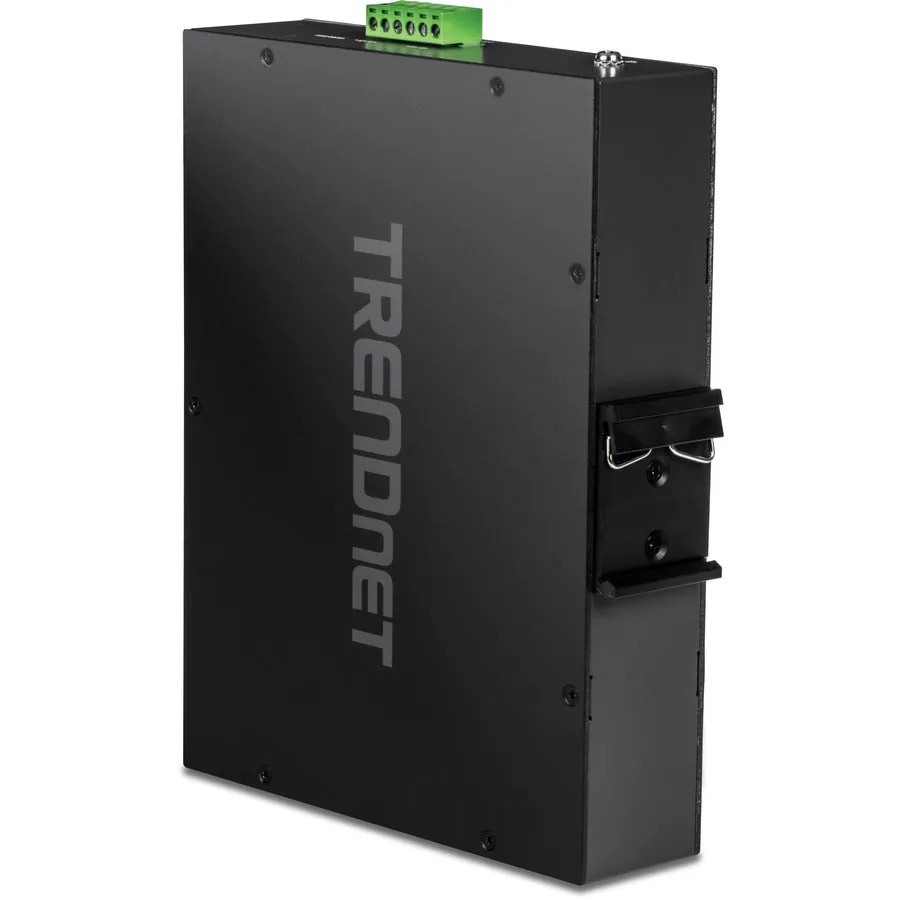

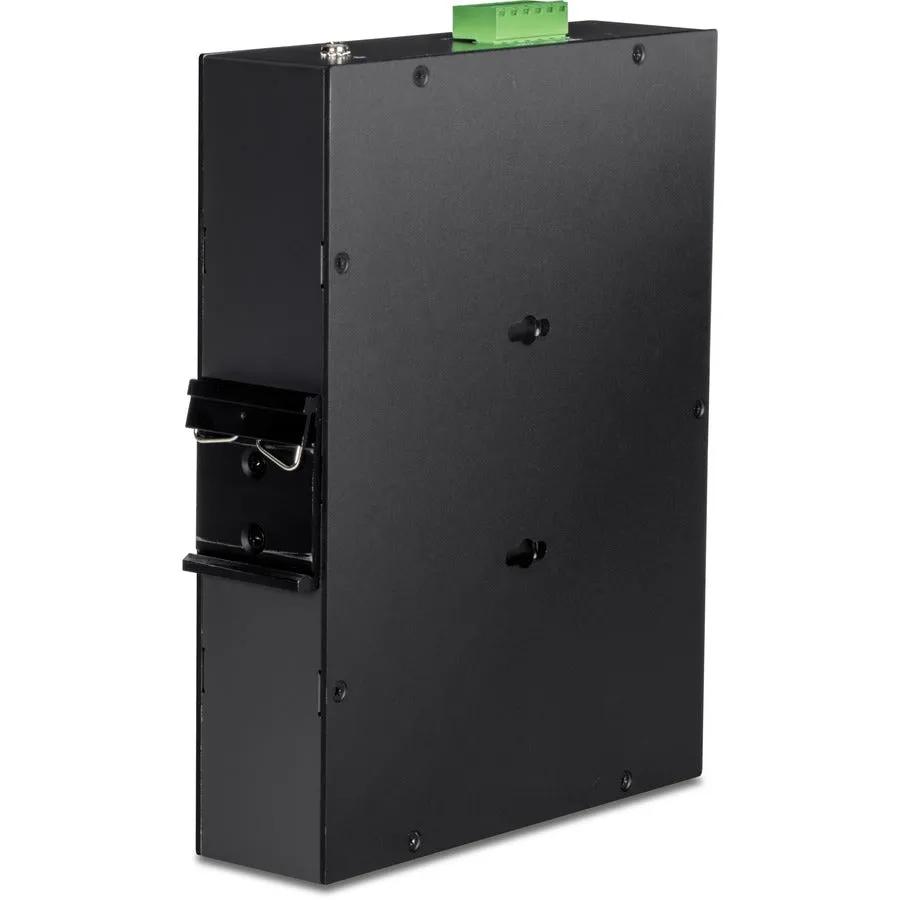

• DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE switch comes with an integrated DIN-Rail mount and mounting hardware brackets.
• EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments.
• REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models:TI-S12048 / 48VDC3000).
• ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power
• TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE Switch comes with Lifetime TRENDnet Manufacturer WARRANTY.

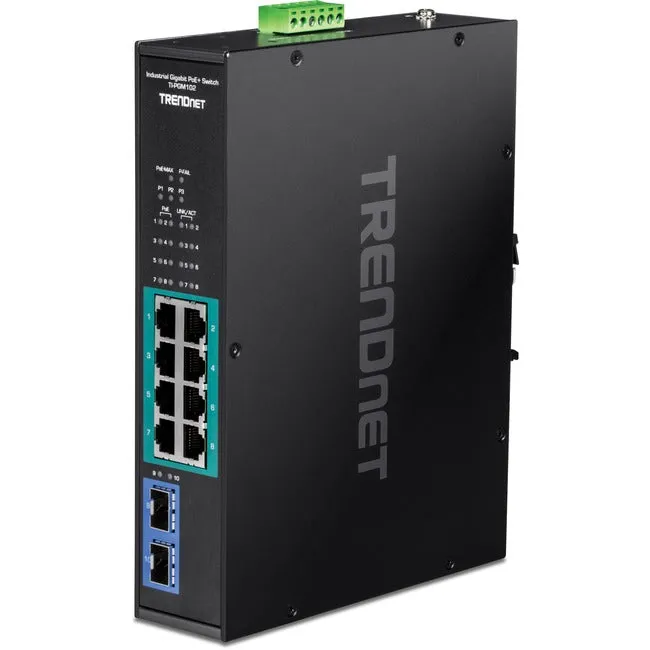

TRENDnet's 10-Port Industrial Gigabit PoE DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM102, has eight gigabit PoE ports with a 240W PoE power budget, plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE devices to the switch, while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments.

PoE Power

A 240W PoE power budget supplies up to eight Power over Ethernet devices with PoE power.

Fault Tolerance

Features redundant power inputs with overload current protection and output alarm relay.

Industrial Hardened Design

Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).

NETWORKING SOLUTION | FEATURES | Full PoE Power Budget

Supplies up to 30W of PoE/PoE power per port with a 240W PoE power budget

Switching Capacity

20Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Network Ports

8 x Gigabit PoE ports and 2 x Gigabit slots

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24048, 48VDC3000)

Wide Operating Temperature

Rated for an operating temperature range of -20° - 65°C (-4° - 149°F)

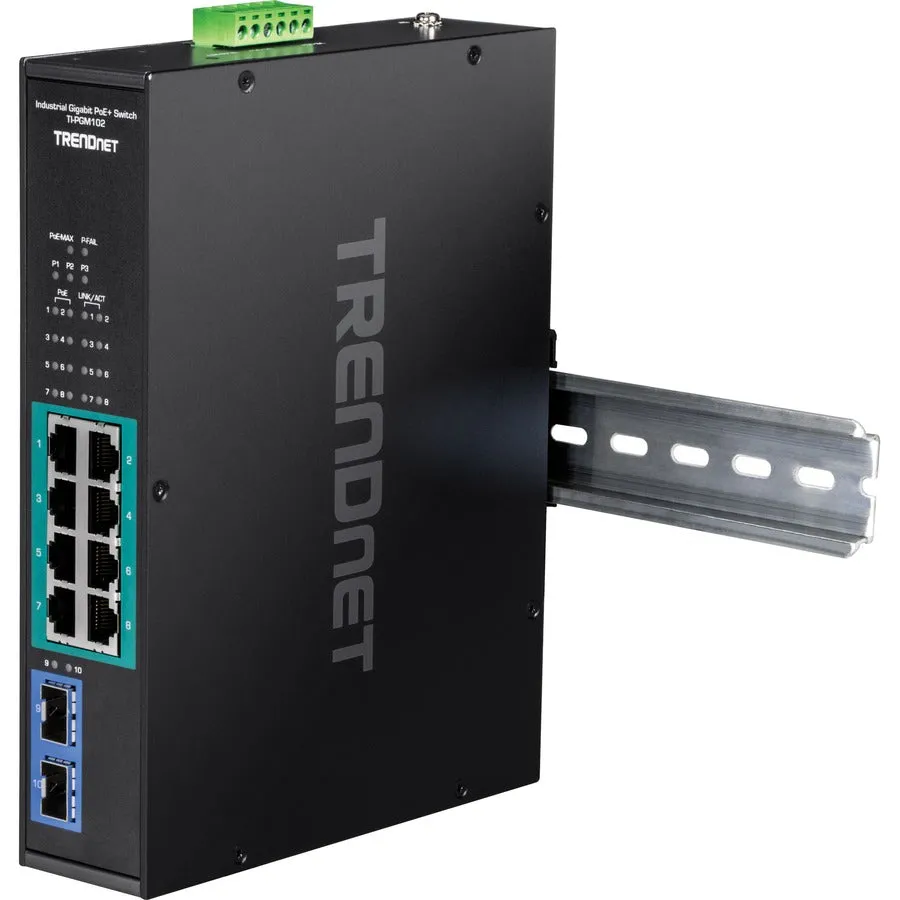

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware

Alarm Relay

Alarm relay triggered by power failure of primary and/or redundant power

Grounding Point

Grounding point protects equipment from external electrical surges

• Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily


• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters


• Gigabit Ethernet port for ultra-fast network speeds


• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience


• With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
